25MHz Low Jitter XTAL Oscillator with AGC

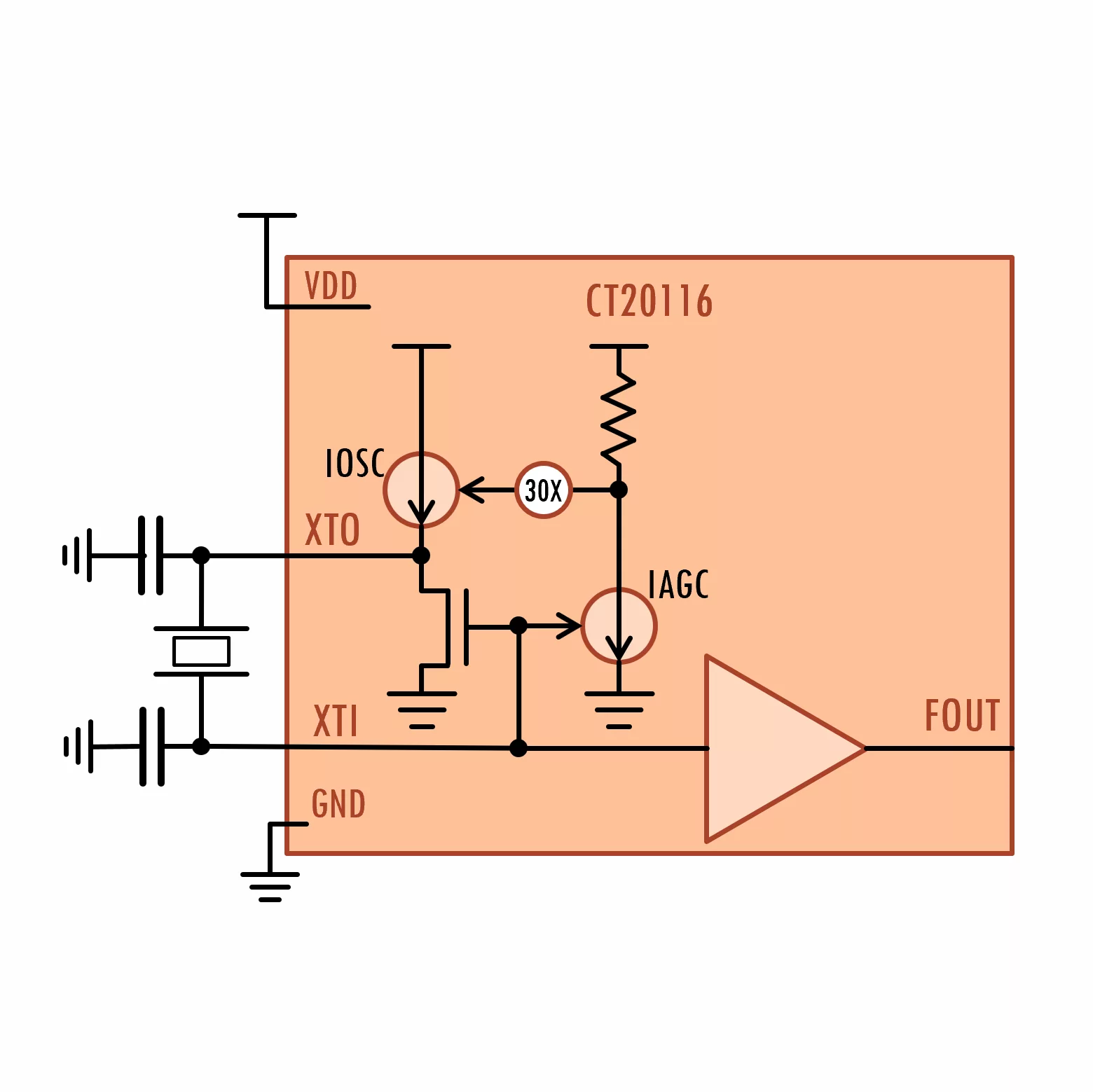

CT20116 is a crystal oscillator that generates a low jitter 25MHz clock by mean of either an external crystal connected between pins XTALI/REFCLK_IN and XTALO or an external reference 25/50MHz clock provided at the XTALI/REFCLK_IN pin which will be divided internally as required and buffered to be made available as internal reference clock.

The oscillator circuit is designed to drive a parallel resonance AT cut crystal with a certain drive level; this drive level is dependent by the ESR parameter. If a crystal is specified for a lower drive level (with respect to the drive level measured on the chosen crystal or simulated with a vendor-specific crystal model), a current limiting resistor should be placed in series between XTALO and the crystal.

CT20116 exhibits low jitter, high accuracy, fast rise and fall times and good driving capabilities while retaining a limited power consumption.

• 25MHz clock output with ±100ppm accuracy
• Rise and Fall time <6ns with maximum capacitive load of 40pF
• Stabilization Time <9ms
• Jitter < 20ps (3.5ps typical)
• Maximum Current Consumption <0.65mA from 3.3V and <0.1mA from 1.8V
• Power Down Current < 100nA at T = 150°C

• Automotive Ethernet
• Baseband Telecom

• Datasheet
• Integration guidelines
• GDS2 and LVS Netlist
• Footprint (.LEF)
• Test Specifications
