Vendor: Dolphin Semiconductor Category: PLL

24-bit Cap-less ADC PLL-less 2 channels

The sADC-H1-LR.02 is a mixed (analog and digital) Virtual Component containing 2 mono ADCs, and additional functions offering an …

TSMC 28nm Silicon Proven View all specifications

Overview

The sADC-H1-LR.02 is a mixed (analog and digital) Virtual Component containing 2 mono ADCs, and additional functions offering an ideal mixed-signal front-end for low-power and high-quality audio applications.

Key features

  • Patented PLL-less solution: generate all the sampling frequency through a single master clock frequency with no need of audio PLL
  • Embedded low noise voltage regulator for best resilience to power supply noise
  • Optimal sound recording performance thanks to high dynamic range and Automatic Gain control feature

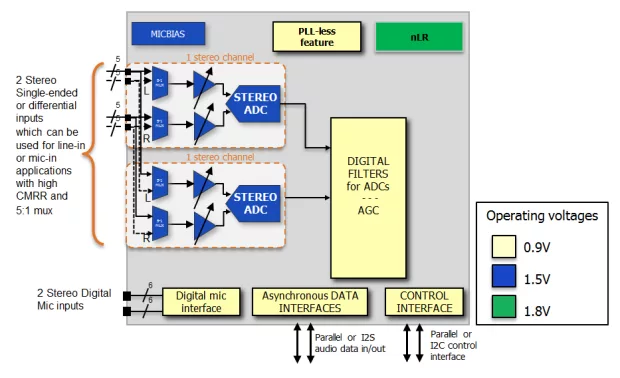

Block Diagram

sADC-H1-LR.02_TSMC_28_HPCP block diagram

Silicon Options

Foundry Node Process Maturity
TSMC 28nm 28nm 280 nm Silicon Proven

Specifications

Identity

Part Number
sADC-H1-LR.02_TSMC_28_HPCP
Vendor
Dolphin Semiconductor
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider
