18-40MHz Crystal Oscillator on INTEL-16
High end consumer and professional applications require crystals with a minimum number of external components.
Overview
High end consumer and professional applications require crystals with a minimum number of external components. These applications typically operate under severe noise environment of large digital video processing chips. A standard crystal oscillator pad provided in commodity libraries induces high noise and jitter.Analog Bits has developed a unique low noise Crystal Oscillator macro based on a proprietary architecture that is in volume production in several high end graphics and multi-media applications. This differentiated architecture has earned outstanding reviews on high volume production boards.
Key features
- Crystal Oscillator pad macro that supports many industry standard crystals in the 18-40MHz range (e.g. 19.2, 24MHz, 25MHz, 38.4MHz)
- Uses standard CMOS transistors
- Crystal Oscillation Mode: Fundamental
- Power down option for IDDQ testing
- Oscillator by-pass mode option for logic testing
- Self-contained ESD protection structure
Block Diagram

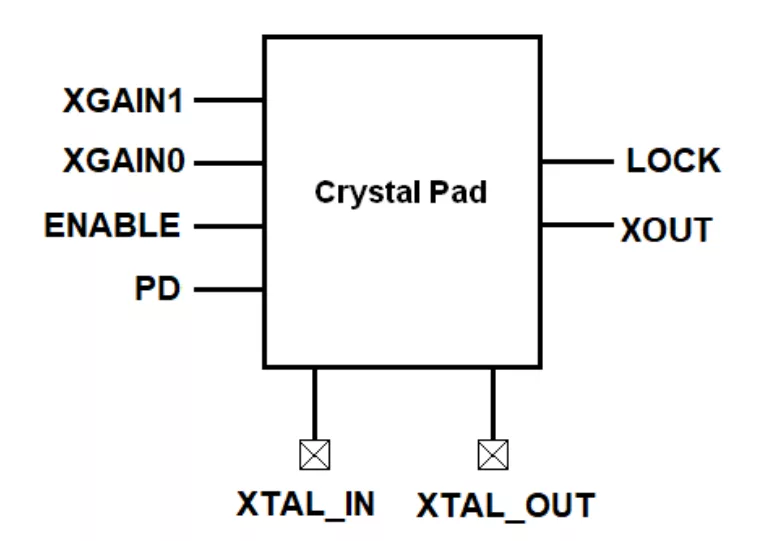

18-40MHz Crystal Oscillator on INTEL-16 block diagram
Specifications
Identity
Part Number
18-40MHz Crystal Oscillator on INTEL-16
Vendor
Analog Bits Inc.
Type
Silicon IP
