15 to 2780 kHz amplifier with band-pass filter
Band-pass filter (BPF) includes LPF and two stages amplifier.
Overview
Band-pass filter (BPF) includes LPF and two stages amplifier. All stages input DC are decoupled and compensated. LPF is based on Chebyshev 4th stage filter. BPF has constant gain 20 dB. Two stage amplifier gain is changed by digital code from 0 to 60 dB.
Key features
- UMC CMOS 0.18 um
- Low consuming
- Wide gain adjustment range
- Differential input and output
- Digital code gain adjustment
- Independent setting for upper and lower band-pass filter cut-off frequency
- Portable to other technologies (upon request)
Block Diagram

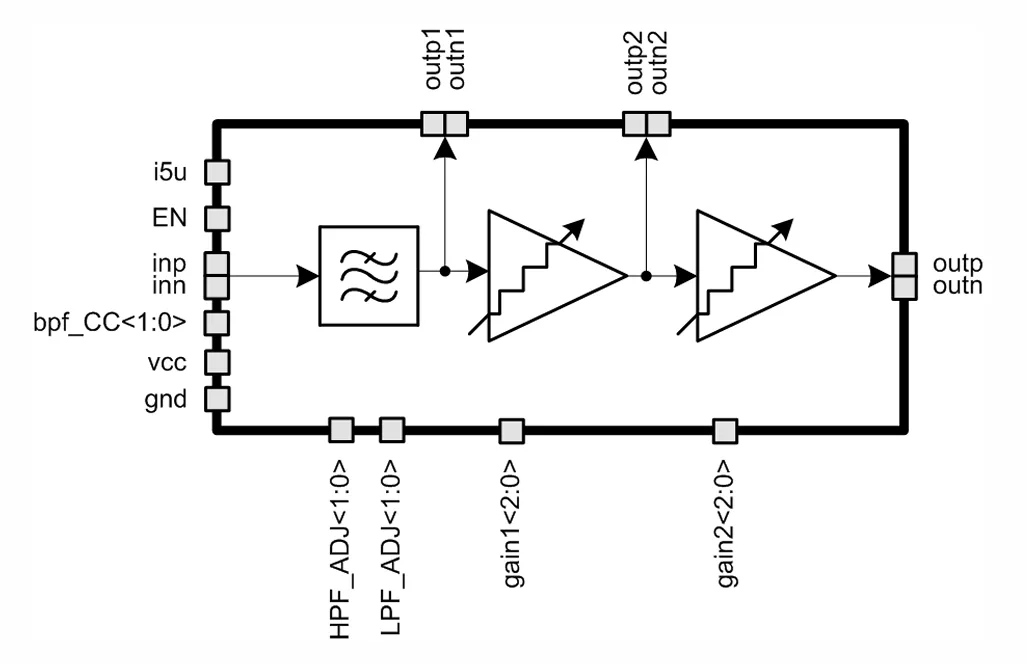

180UMC_BPF_01 block diagram
Applications
- IF filtration and amplification
What’s Included?
- Schematic or NetList
- Abstract model (.lef and .lib files)
- Layout view (optional)
- Behavioral model (Verilog)
- Extracted view (optional)
- GDSII
- DRC, LVS, antenna report
- Test bench with saved configurations (optional)
- Documentation
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| UMC | 180nm | BCD | Silicon Proven |
Specifications
Identity
Part Number
180UMC_BPF_01
Vendor
NTLab
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
Lithuania
