130 to 940 MHz Power amplifier
The power amplifier supplies the transmit RF signal to the antenna.
Overview
The power amplifier supplies the transmit RF signal to the antenna. It is based on E class power amplifier with preamplifier. Voltage regulator and duty cycle adjustment system are used to regulate an output power. Matching circuit is needed to transmit output signal to the antenna and to eliminate the second and the third harmonics of PA output signal. Built-in trimming capacitors are used for PA fine adjustment.Operating frequency range is 130...940 MHz. Maximum output power is 10 dBmW.
The block is fabricated on iHP SiGe BiCMOS 0.25 um (SGB25V) technology.
Key features
- iHP SGB25V
- E class PA
- Adjusted gain (-20..10 dBmW)
- Build-in voltage regulator
- Build-in duty cycle adjustment system of output signal
- Build-in block of adjustment capacities for fine adjustment characteristics
- Portable to other technologies (upon request)
Block Diagram

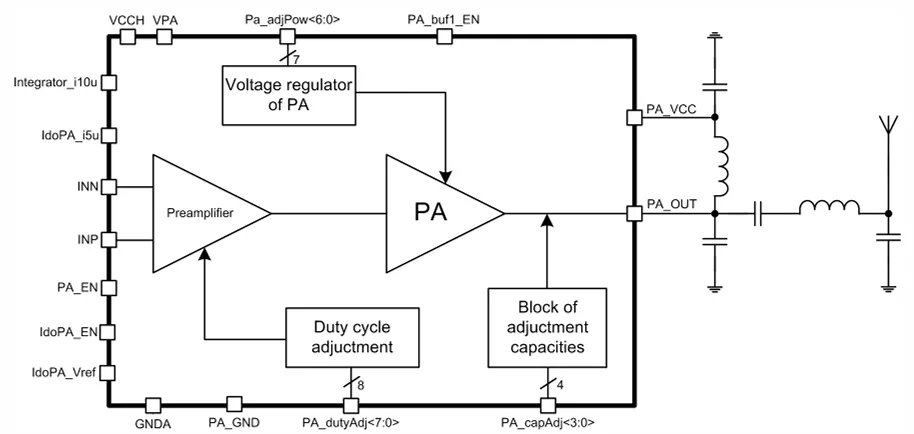

250iHP_PA_01 block diagram
Applications
- Portable transmitters
- Portable transceiver
- Mobile communication devices
What’s Included?
- Schematic or NetList
- Abstract model (.lef and .lib files)
- Layout view (optional)
- Behavioral model (Verilog)
- Extracted view (optional)
- GDSII
- DRC, LVS, antenna report
- Test bench with saved configurations (optional)
- Documentation
Specifications
Identity
Part Number
250iHP_PA_01
Vendor
NTLab
Type
Silicon IP
