128b-132b Verification IP
The 128b-132b Verification IP provides an effective &efficient way to verify the 128B132B components of an IP or SoC.
Overview
The 128b-132b Verification IP provides an effective &efficient way to verify the 128B132B components of an IP or SoC. The VIP is fully compliant with the 128B132B Specification. The VIP is lightweight with easy plug-and-play components so that there is no hit on the design cycle time
Key features
- Encoding of 128-bit bytes into 132-bit symbols
- Decoding of 132-Bit symbols into 128-bit byte
- It supports both serial and parallel
- It supports Gen 2 link operating at 10Gbps
- Industry-compatible special character coding
- In different technologies that are used (like – PCIe, USB, Ethernet, Display Port, etc).

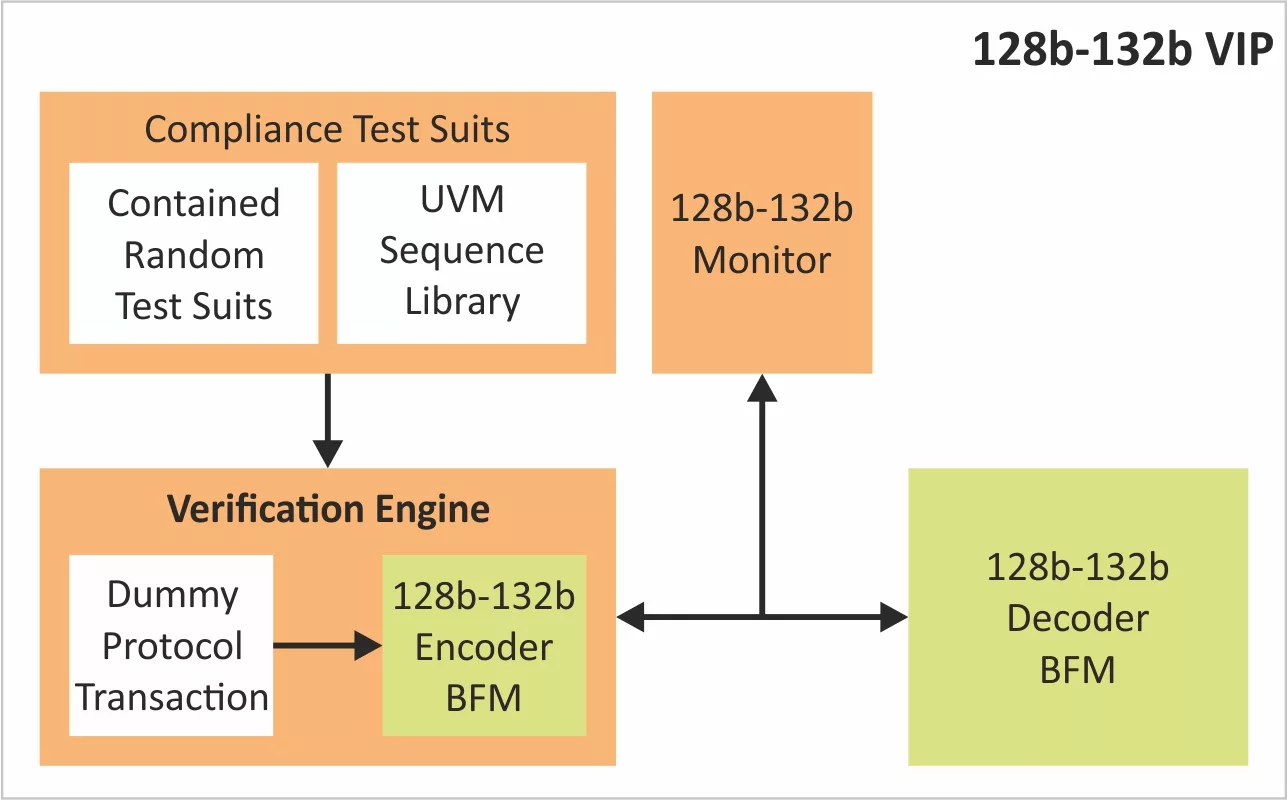

Block Diagram
128b / 132b block diagram
Benefits
- Available in native System Verilog (UVM/OVM/VMM) and Verilog
- Unique development methodology to ensure the highest levels of quality
- Availability of Compliance & Regression Test Suites
- 24X5 customer support
- Unique and customizable licensing models
- Exhaustive set of assertions and coverage points with connectivity examples for all the components
- Consistency of interface, installation, operation, and documentation across all our VIPs
- Provide complete solutions and easy integration in IP and SoC environment
What’s Included?
- 128b-132b Encoder BFM
- 128b-132b Decoder BFM
- 128b-132b Monitor
- Testbench Configurations
- Test Suite (Available in Source code)
- Basic and Directed Protocol Tests
- Random Tests and Error Scenario Tests
- Assertions & Cover Point Tests
- Integration Guide, User Manual, and Release Notes
Specifications
Identity
Part Number
128b / 132b
Vendor
Truechip Solutions
Type
Verification IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
USA
