055UMC_ADC_01 is 12bit analog-to digital converter (ADC) with single-ended input of 200kHz sample rate.

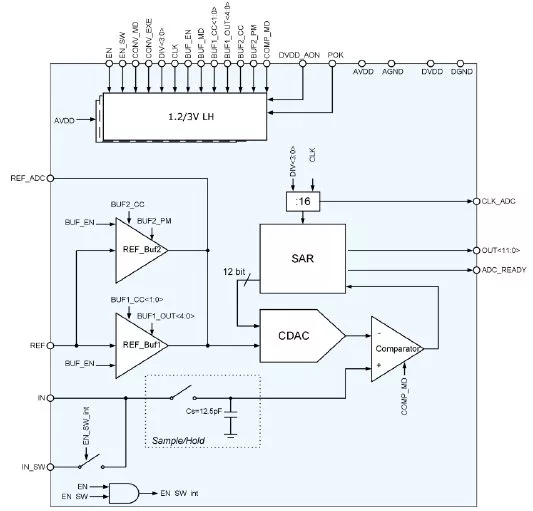

055UMC_ADC_01 is 12bit analog-to digital converter (ADC) with single-ended input of 200kHz sample rate. The device operates with a 1.2V reference and includes a 12-bit successive approximation register (SAR) with inherent sample-and-hold. Two reference voltage buffers are implemented for high or low power consumption.
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| UMC | 55nm | 55nm 550 nm | Pre-Silicon |
Note: some files may require an NDA depending on provider policy.
12-bit single-ended SAR ADC is a ADC IP core from NTLab listed on Semi IP Hub. It is listed with support for umc Pre-Silicon.
Engineers should review the overview, key features, supported foundries and nodes, maturity, deliverables, and provider information before shortlisting this ADC IP.
Yes. Buyers can compare this product with similar semiconductor IP cores or IP families based on category, provider, process options, and structured technical specifications.
