Vendor: Fraunhofer Institute Integrated Circuits and Systems (IIS) Category: DAC

12-Bit 1 MS/s DAC with voltage output on AMS C18

The IP consists of a 12 bit current steering DAC.

12 Bit View all specifications

Overview

The IP consists of a 12 bit current steering DAC. The DAC is connected to a transimpedance amplifier(TIA) in order to provide a voltage output signal. The amplifier can be adapted for different applications to optimize for performance, power consumption or output load of the IP.

The digital input data is saved to an internal register and provided immediately to the output.

The IP uses a single current reference input. A matching current reference cell can be provided. 7 bit gain and offset trimming is included to adapt for process variations.

The DAC is silicon proven using the AMS C18 process. Measurement results are available from evaluation and volume production. One application of the IP is an industrial sensor ASIC for safety critical applications.

Fraunhofer IIS provides a detailed documentation and support for the IP integration.
Modifications, extensions and technology ports of the IP are available on request.

Key features

  • Resolution: 12 bit
  • Conversion rate: 1 MS/s
  • Power consumption: 15 mW @ 3.3 V
  • Integral non-linearity: +/- 1.5 LSB
  • Diff. non-linearity: +/- 0.7 LSB
  • Supply voltage: 3.0 V – 3.6 V
  • Operation clock: 0 – 1 MHz
  • Output voltage range: 1.8 V – 2.8 V
  • Output load: >= 100 Ohm
  • Temperature range: -40 °C – 125 °C

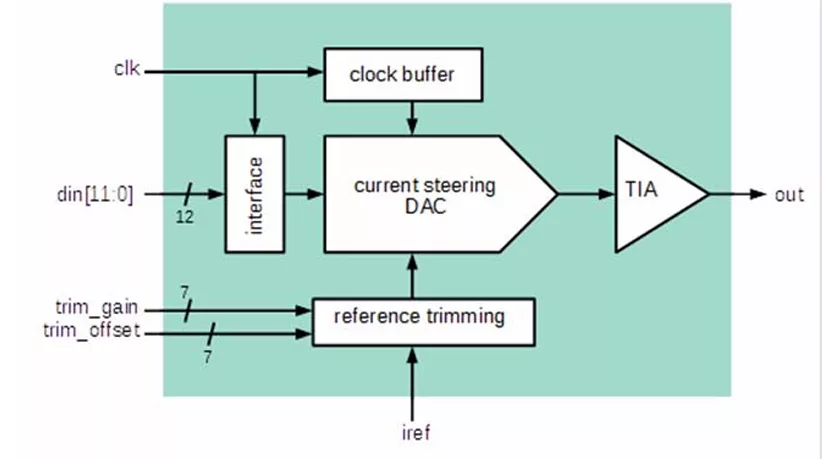

Block Diagram

DAC12b001MS180nm block diagram

Benefits

  • Low design risk due to silicon proven design
  • Easy to use input due to integrated output buffer
  • Robust operation across full temperature range from -40 °C up to 125 °C
  • Simple integration due to integrated reference drivers and reference trimming DAC

Applications

  • Automation
  • Industrial

What’s Included?

  • GDSII data
  • Simulation model
  • Documentation
  • Silicon validation report
  • Integration support

Specifications

Identity

Part Number
DAC12b001MS180nm
Vendor
Fraunhofer Institute Integrated Circuits and Systems (IIS)
Type
Silicon IP

Analog

Resolution bits
12 Bit

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.
