12-bit 1-channel 44/70/90 MSPS pipeline ADC

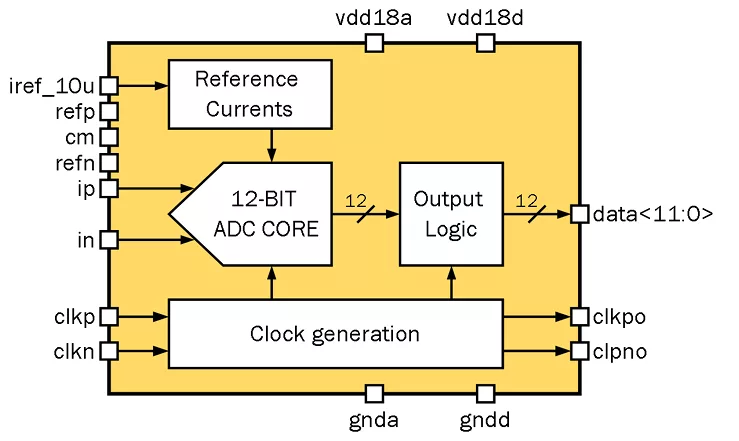

180TSMC_ADC_13 is a low-power high-speed 12 bit ADC that employs high-performance differential pipeline architecture. The ADC consists of a core ADC, output logic, timing generation, reference currents circuits. The ADC requires: 1.7 ÷ 2 V analog supply, 1.7 ÷ 2 V digital supply, differential reference voltages 1.15 V and 0.65 V, common mode voltage 0.85 ÷ 1 V, reference current 9.9 ÷ 10.1 uА and differential input clock. The ADC supports standby mode which allows state with minimum power consumption. There is also the ability to configure the operating modes of the ADC by using digital registers.

• TSMC 180 nm CMOS technology
• High speed pipelined ADC
• 1-channel
• Resolution 12 bit
• Conversion rate 44 – 90 MHz
• Different power supplies for digital (1.8 V) and analog (1.8 V) parts
• Low standby current 0.2 u?
• Low power dissipation:
• - 59.4 mW at 44 MSPS
• - 84.6 mW at 70 MSPS
• Total Harmonic Distortion (THD):
• - -70.6 dB at 44 MSPS and FIN = 1.9 MHz
• - -70.1 dB at 70 MSPS and FIN = 1.9 MHz
• Spurious-free dynamic range (SFDR)
• - 72.7 dB at 44 MSPS and FIN = 1.9 MHz
• - 73 dB at 70 MSPS and FIN = 1.9 MHz
• Signal-to-noise ratio (SNR):
• - 61.6 dB at 44 MSPS and FIN = 1.9 MHz
• - 62.4 dB at 70 MSPS and FIN = 1.9 MHz
• Compact die area 1.44 mm2
• Portable to other technologies (upon request)

• Optical networking
• Test equipment
• Portable ultrasound and digital beam-forming systems
• Telecommunication systems
• High quality imaging video systems
• WiFi, WiMax
• Mobile Communications
• High quality imaging video systems
• Data acquisition systems

• Schematic or NetList
• Abstract model (.lef and .lib files)
• Layout view (optional)
• Behavioral model (Verilog)
• Extracted view (optional)
• GDSII
• DRC, LVS, antenna report
• Test bench with saved configurations (optional)
• Documentation
