12-bit 1-channel 4 MSPS SAR ADC

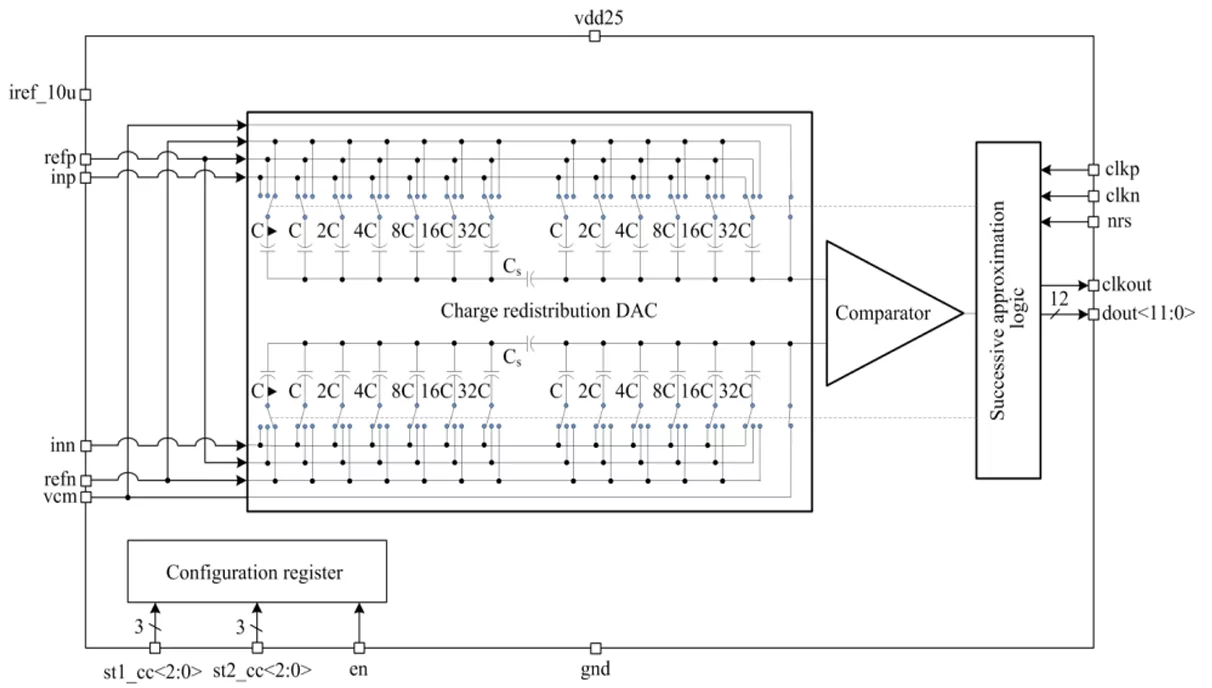

065TSMC_ADC_10 employs high-performance differential successive approximation architecture with sub-ranging and output offset compensation techniques. The ADC operates with sampling rate up to 4 MSPS and a corresponding input clock up to 52 MHz. The ADC supports standby mode and features low power consumption, compact area.

• TSMC CMOS 65 nm
• Resolution 12 bit
• Single power supplies for digital and analog parts (2.5 V)
• Sampling rate up to 4 MSPS
• Clock frequency up to 52 MHz
• Standby mode (current consumption <50 nA)
• Low-power dissipation:
• - 2.5 mW at 4 MSPS
• Spurious-free dynamic range:
• - 71.1 dB at 4 MSPS and Fin = 10.7 MHz
• Signal-to-noise ratio:
• - 53.5 dB at 4 MSPS and Fin = 10.7 MHz
• Compact die area 0.124 mm2

• WiFi, WiMax
• Mobile communications
• High quality imaging video systems
• Data acquisition systems
• Portable ultrasound and digital beam-forming systems

• Schematic or NetList
• Abstract model (.lef and .lib files)
• Layout view (optional)
• Behavioral model (Verilog)
• Extracted view (optional)
• GDSII
• DRC, LVS, antenna report
• Test bench with saved configurations (optional)
• Documentation
