12-bit 1-channel 20 to 100 MSPS ADC

The low-power high-speed 12-bit ADC employs a high-performance differential pipeline architecture.

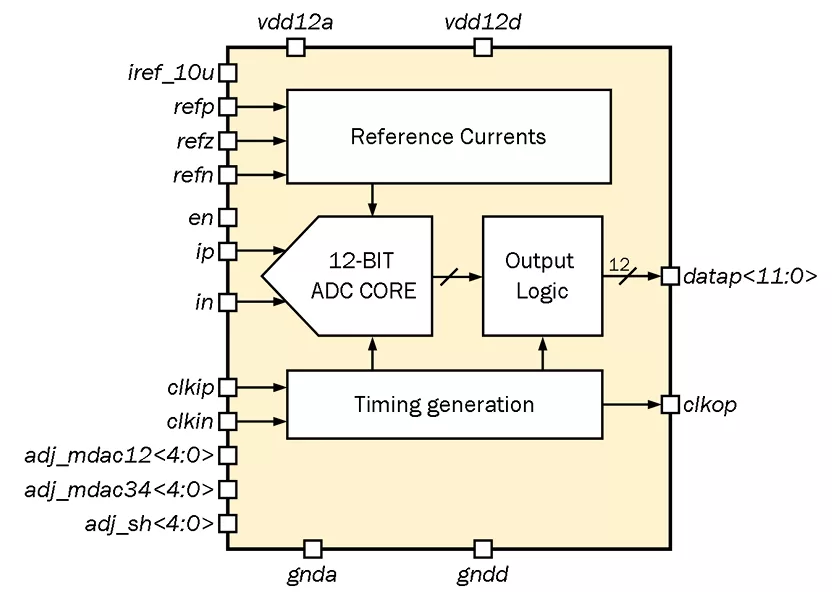

The ADC consists of a core ADC, output logic, timing generation, reference currents circuits. The ADC requires: 1.08 ÷ 1.32 V analog supply, 1.08 ÷ 1.32 V digital supply, differential reference voltages 0.85 V and 0.35 V, common mode voltage 0.6 V, reference current 9.9 ÷ 10.1 uA and differential input clock.
The ADC supports standby mode which allows state with minimum power consumption.
There is also the ability to configure the operating modes of the ADC by using digital registers.
The block is designed on TSMC CMOS 65 nm technology.

• TSMC CMOS 65nm
• High speed pipelined ADC
• Resolution 12 bit
• Conversion rate 20 – 100 MHz
• Different power supplies for digital (1.2 V) and analog (1.2 V) parts
• Low standby current 33 uA
• Low power dissipation 76.8 mW
• Spurious-free dynamic range 76.7 dB
• Signal-to-noise ratio 64 dB
• Compact die area 1.03 mm2

• Optical networking
• Test equipment
• Portable ultrasound and digital beam-forming systems
• Telecommunication systems
• High quality imaging video systems
• WiFi, WiMax
• Mobile Communications
• High quality imaging video systems
•  Data acquisition systems

• Schematic or NetList
• Abstract model (.lef and .lib files)
• Layout view (optional)
• Behavioral model (Verilog)
• Extracted view (optional)
• GDSII
• DRC, LVS, antenna report
• Test bench with saved configurations (optional)
• Documentation
