What is 12-bit 1-channel 15 to 25 MSPS pipeline ADC?
12-bit 1-channel 15 to 25 MSPS pipeline ADC is a ADC IP core from NTLab listed on Semi IP Hub.
Vendor:
NTLab
Category:
ADC
12-bit 1-channel 15 to 25 MSPS pipeline ADC
250iHP_ADC_03 is a low-power high-speed 12-bit ADC that employs high-performance differential pipeline architecture.
Overview
250iHP_ADC_03 is a low-power high-speed 12-bit ADC that employs high-performance differential pipeline architecture. The block consists of a sample and hold device, a core ADC and block of comparators. The ADC requires: 2.5 V analog supply, differential reference voltages 1.5 V and 1.0 V, common mode voltage 1.25 V and differential input clock. The ADC supports standby mode which allows state with minimum power consumption. There is also the ability to configure the operating modes of the ADC by using digital registers.
Key features
- iHP SGB25V
- Resolution 12 bit
- Sampling frequency 15 to 25 MHz
- Low power consumption in standby mode
- High values of signal/noise ratio (60 dB)
- Spurious-free dynamic range 62 dB
- Portable to other technologies (upon request)
Block Diagram

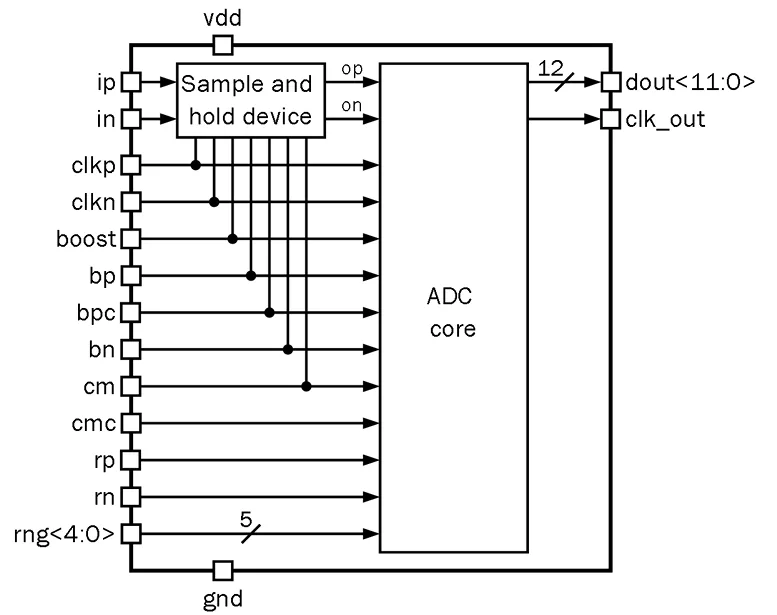

250iHP_ADC_03 block diagram
Applications
- Optical networking
- Test equipment
- Portable ultrasound and digital beam-forming systems
- Telecommunication systems
- Higher quality imaging in video systems
What’s Included?
- Schematic or NetList
- Abstract model (.lef and .lib files)
- Layout view (optional)
- Behavioral model (Verilog)
- Extracted view (optional)
- GDSII
- DRC, LVS, antenna report
- Test bench with saved configurations (optional)
- Documentation
Specifications
Identity
Part Number
250iHP_ADC_03
Vendor
NTLab
Type
Silicon IP
Analog
Resolution bits
12 Bit
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
Lithuania
