Vendor: NTLab Category: ADC

12-bit 1-channel 1 to 10 kSPS SAR ADC

130iHP_ADC_01 employs high-performance successive approximation architecture.

12 Bit View all specifications

Overview

130iHP_ADC_01 employs high-performance successive approximation architecture. The ADC operates with sampling rate from 1 to 10 kSPS and input clock from 14 to 140 kHz. The block has differential input and can operate in two modes: single measurement or continuous measurement. The ADC supports standby mode and features low power consumption, compact area.

Key features

Resolution 12-bit
Sample rate 1-10 kSPS
Low power dissipation: 1 mW at 10 kSPS
Separate power supplies for digital (2.5 V) and analog (2.5 V) parts
iHP SiGe BiCMOS 0.13um technology

Block Diagram

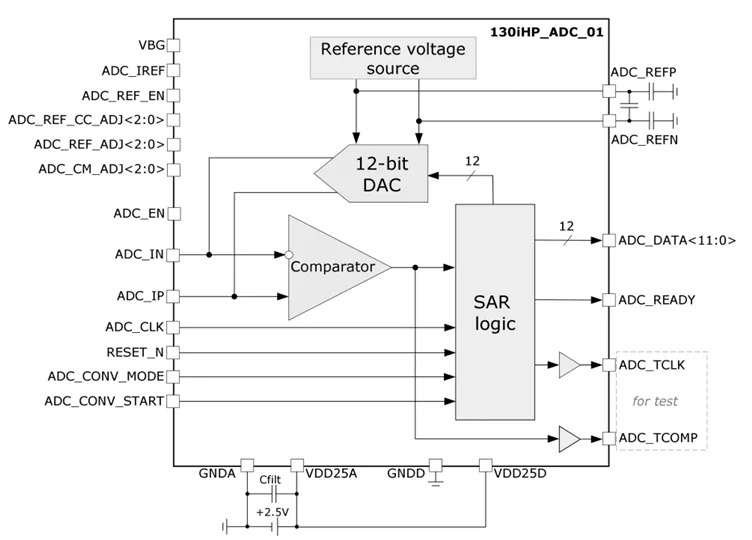

130iHP_ADC_01 block diagram

Applications

On chip voltage measurement
Receivers
Measurement equipment
Medical equipment

What’s Included?

Schematic or NetList
Abstract model (.lef and .lib files)
Layout view (optional)
Behavioral model (Verilog)
Extracted view (optional)
GDSII
DRC, LVS, antenna report
Test bench with saved configurations (optional)
Documentation

Specifications

Identity

Part Number

130iHP_ADC_01

Vendor

NTLab

Type

Silicon IP

Analog

Resolution bits

12 Bit

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.
