10G/5G Verification IP

The 10G/5G Ethernet Verification IP provides an effective & efficient way to verify the components interfacing with Ethernet interface of an IP or SoC. The 10G/5G Ethernet VIP is fully compliant withIEEE standard 802.3 specification. This VIP is light weight with an easy plug -and- play interface so that there is no hit on the design cycle time.

• Provides 10G/5G as per IEEE Std 802.3
  • Supports Ethernet XGMII
  • Supports XSBI
  • Supports LX4 & CX4
  • Supports LRM, CR, ER, LR
  • Supports full duplex ethernet MAC
  • Supports 64/66B PCS, BASE-R
  • Supports 8B/10B PCS, BASE-X
  • Supports FEC Decoder
  • Supports PMD Training
  • Supports AN
• Supports Energy Efficient Ethernet.
• Supports all possible widths for PCS to Serdes interface.
• Supports clock data recovery(CDR).
• Supports Pause Frame-Based Flow Control.
• Supports test pattern generation and checking.
• Supports Management data Input/output registers.
• Supports full duplex operation.
• Callback support in all Layers to provide user control.
• Rich set of configuration and parameters.
• Supports Dynamic as well as Static Error Injection scenarios.
• On the fly protocol checking static and dynamic assertion.
• Built in Coverage analysis.
• Supports XGXS and 10Gigabit XAUI.
• Supports the USXGMII.
• Graphical analyzer to show transactions for easy debugging.

• Available in native System Verilog (UVM/OVM/ VMM) and Verilog
• Unique development methodology to ensure the highest levels of quality
• Availability of Compliance & Regression Test Suites
• 24X5 customer support
• Unique and customizable licensing models
• Exhaustive set of assertions and coverage points with connectivity example for all the components
• Consistency of interface, installation, operation, and documentation across all our VIPs
• Provide complete solution and easy integration in IP and SoC environment

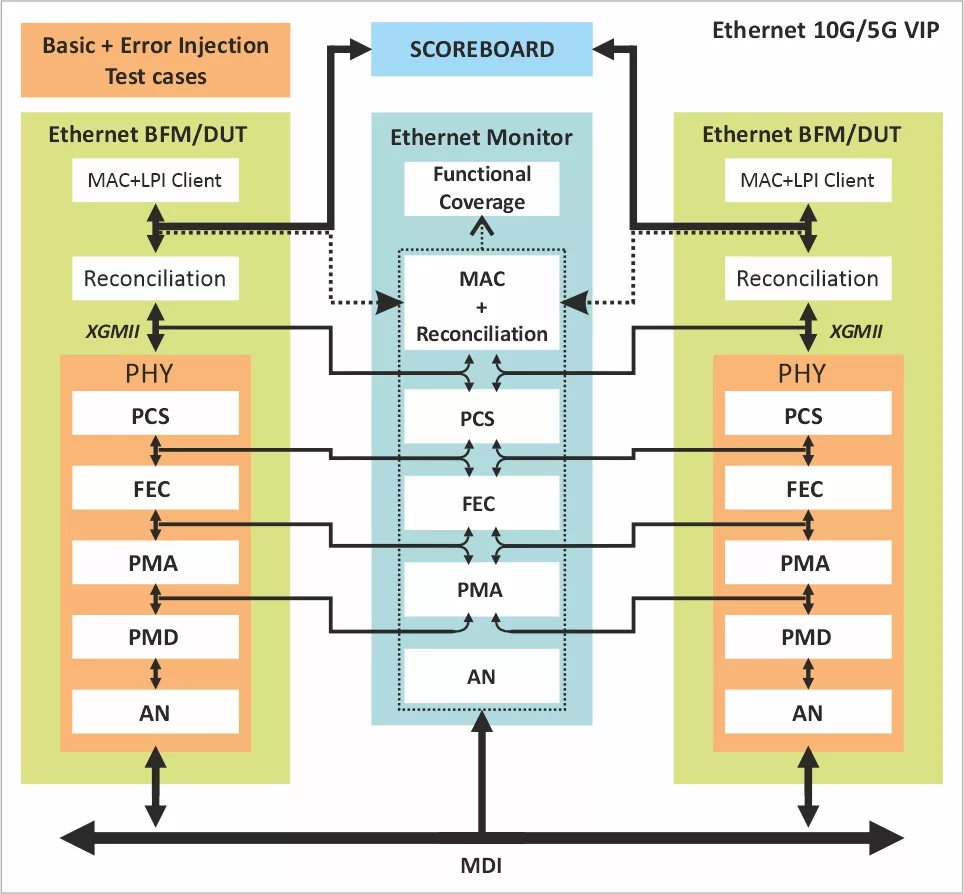

• Deliverables Ethernet 10G/5G BFM’s for
  • MAC layer
  • Reconciliation layer
  • PCS layer
  • PMA layer
  • FEC layer
  • PMD layer
  • AN layer
• Ethernet 10G layered monitors and scoreboard
• Test environment and Test Suite-
  • Basic and Directed Protocol Tests
  • Random Tests
  • Error Scenario Tests
  • Assertions & Cover Point Tests
  • User Test Suite
• Integration Guide, User Manual and Release Note
• GUI analyser to view simulation packet flow
