10-bit 1-channel 1 MSPS SAR ADC
250iHP_ADC_09 is 10-bit 1 MSPS ADC employs high-performance single ended successive approximation architecture with embedded 8-in…
Overview
250iHP_ADC_09 is 10-bit 1 MSPS ADC employs high-performance single ended successive approximation architecture with embedded 8-input signal multiplexer. The ADC operates with sampling rate 1 MSPS and corresponding input clock 12 MHz. The ADC supports standby mode and features low power consumption, compact area.
Key features
- iHP SiGe BiCMOS 0.25 um
- Resolution 10 bit
- Sampling rate 1…1000 kSPS
- Rail-to-rail input voltage range
- 2.5 V supply voltage
- Low-power dissipation: 0.575 mW at 1 MSPS
- Standby mode
- Compact die area 0.06 mm2
Block Diagram

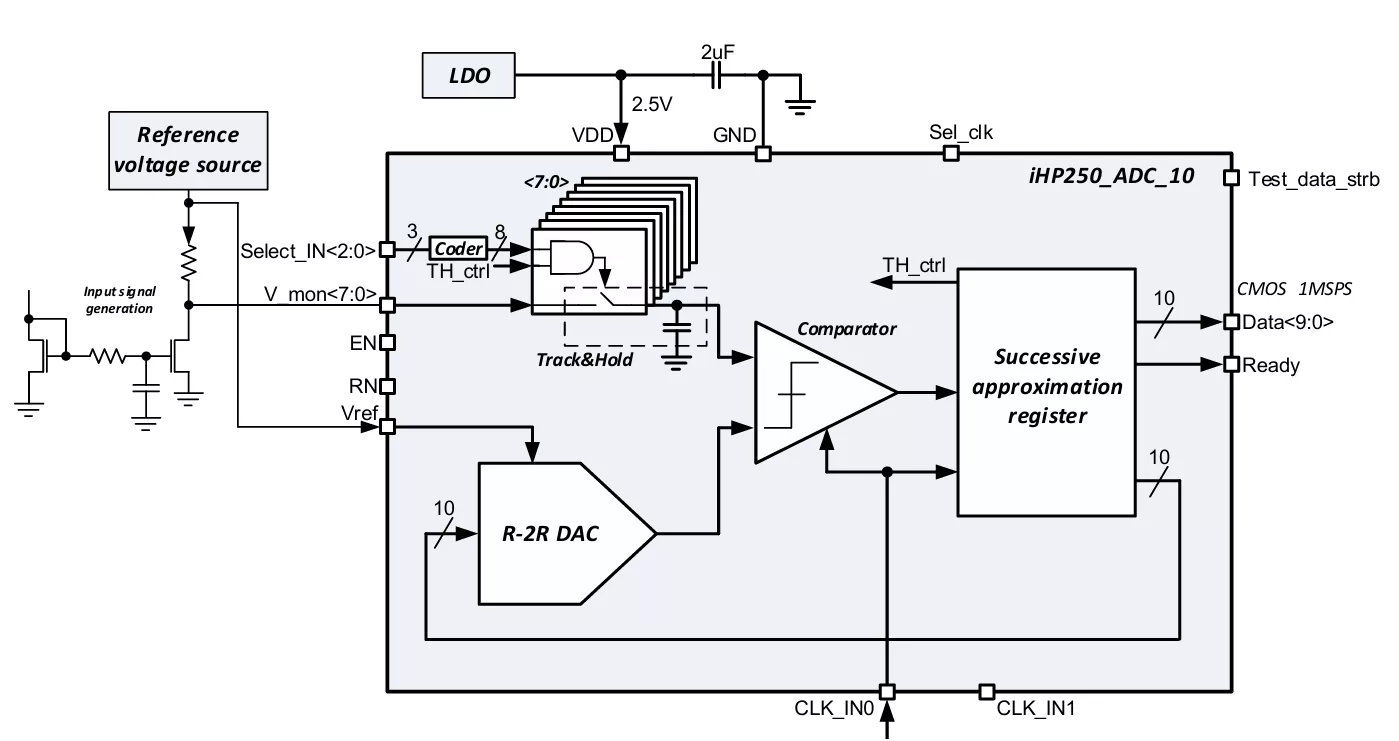

250iHP_ADC_10 block diagram
Applications
- On chip temperature measurement
- On chip voltage measurement
What’s Included?
- Schematic or NetList
- Layout or blackbox
- Verilog, lef and lib files
- Extracted view (optional)
- GDSII
- DRC, LVS, antenna report
- Test bench with saved configurations (optional)
- Documentation
