1 to 30 MHz Intermediate-Frequency Amplifier with Wide Gain Range
IFA consists of 3 stages amplifier with tunable gain, AGC system, linear buffer for analog output and an analog-digital converter…
Overview
IFA consists of 3 stages amplifier with tunable gain, AGC system, linear buffer for analog output and an analog-digital converter (ADC) for 2-bits digital output and a detector of output level.
The amplifier has differential inputs and outputs. Gain is sequentially reduced from the last stage to the first stage. This method allows to keep a low noise figure in wide gain range.
In the analog output mode the circuit controls the gain so that the magnitude of the differential output signal. The signal level is set through Det_ampl_lvl<2:0>.
Digital output with AGC for analog signal mode operates similarly to the previous mode.
AGC operates in an automatic control mode of digital detector threshold for digital signal (MAGN). Threshold and gain are set by the DAC code. Digital output level is set 1.8V, 2.4V, 2.7V, ADC_VCC.
DC offset compensation system operates both at an amplifier output signal and at a buffer output signal.
Key features
- AMS SiGe BiCMOS 0.35um
- Wide gain range (0…60 dB)
- Low group delay time ripple vs. frequency and gain
- Digital and analog output modes
- Built-in AGC system and DCOC
Block Diagram

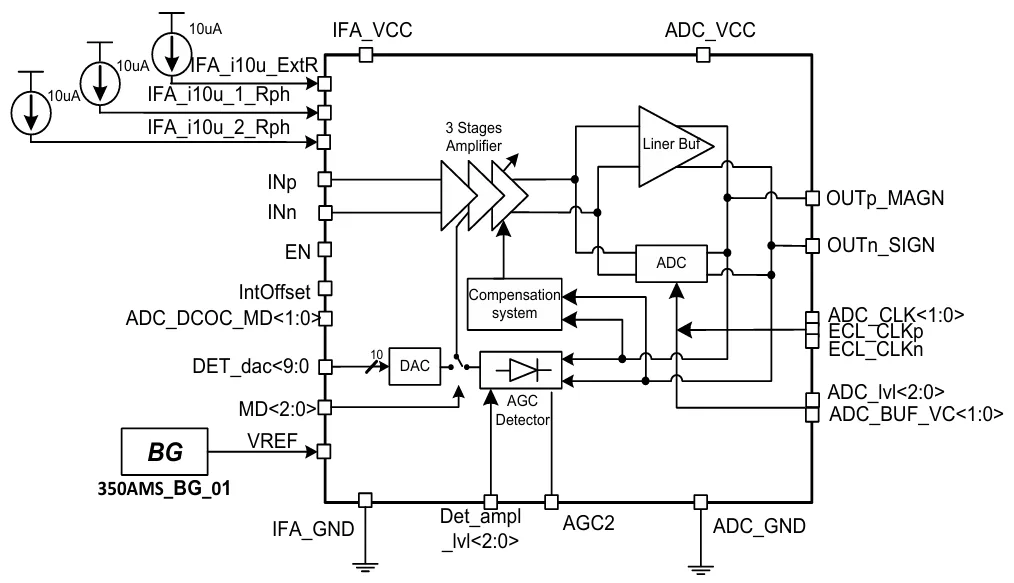

350AMS_IFA_06 block diagram
Applications
- Navigation systems
- Receivers
- Transceivers
What’s Included?
- Schematic or NetList
- Abstract model (.lef and .lib files)
- Layout view (optional)
- Behavioral model (Verilog)
- Extracted view (optional)
- GDSII
- DRC, LVS, antenna report
- Test bench with saved configurations (optional)
- Documentation
Specifications
Identity
Part Number
350AMS_IFA_06
Vendor
NTLab
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
