0.8 to 25 MHz Intermediate-frequency amplifier

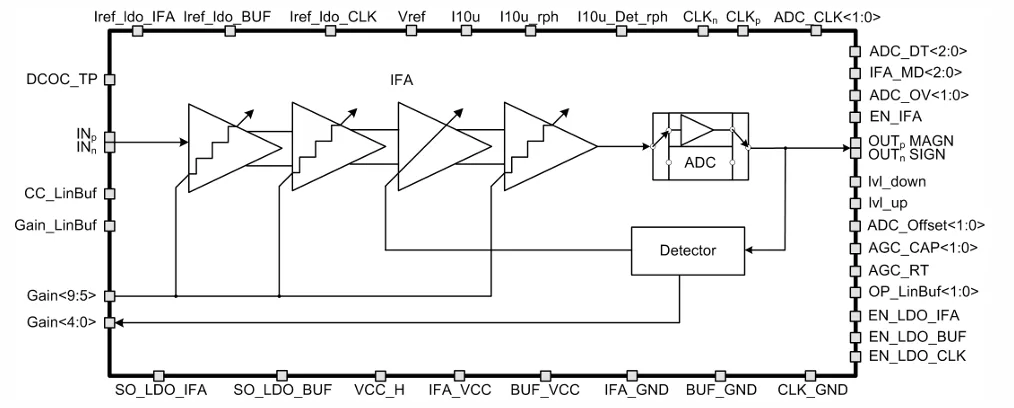

IFA consists of 4-stage amplifier with tunable gain, AGC system, linear output buffer for differential analog output, analog-digital converter for digital output and a detector of output level.
The amplifier has differential inputs and outputs, and consists of 4 stages. Gain is sequentially reduced from the last stage to the first stage. This method allows to keep a low noise figure in wide gain range.
The output voltage maintained by AGC system at differential load 200 Ohm:
- for sinusoidal signal is 200 mV (p-p);
- for noise signal is 480 mV (p-p).
The block is fabricated on AMS035 BiCMOS 0.35 um technology

• AMS035 BiCMOS 0.35 um
• Wide gain range (0…64 dB)
• Low group delay time ripple vs. frequency and gain
• Analog and digital output modes
• Built-in AGC detector with internal capacitor
• Built-in DC offset compensation mode in each stage and in the output buffer
• AGC detector threshold adjustment in the digital mode
• Portable to other technologies (upon request)

• Receivers
• Navigation systems

• Schematic or NetList
• Abstract model (.lef and .lib files)
• Layout view (optional)
• Behavioral model (Verilog)
• Extracted view (optional)
• GDSII
• DRC, LVS, antenna report
• Test bench with saved configurations (optional)
• Documentation
