0.2 to 3 GHz power amplifier
130iHP_PA_03 is based on AB class power amplifier with a preamplifier.
Overview
130iHP_PA_03 is based on AB class power amplifier with a preamplifier. The block is designed to set the required output signal and provides a wide range of output power adjustment. First cascade operates as preamplifier with tunable gain. Second cascade is a fixed-gain cascode differential amplifier. Third cascade amplifies and transmits signal to the output of the circuit in the wide frequency range from 200 to 3000 MHz.
PA output impedance is 50 Ohm
Key features
- iHP SiGe BiCMOS 0.13 um
- AB class PA
- Frequency range from 0.2 to GHz
- Gain adjustment
- Portable to other technologies (upon request)
Block Diagram

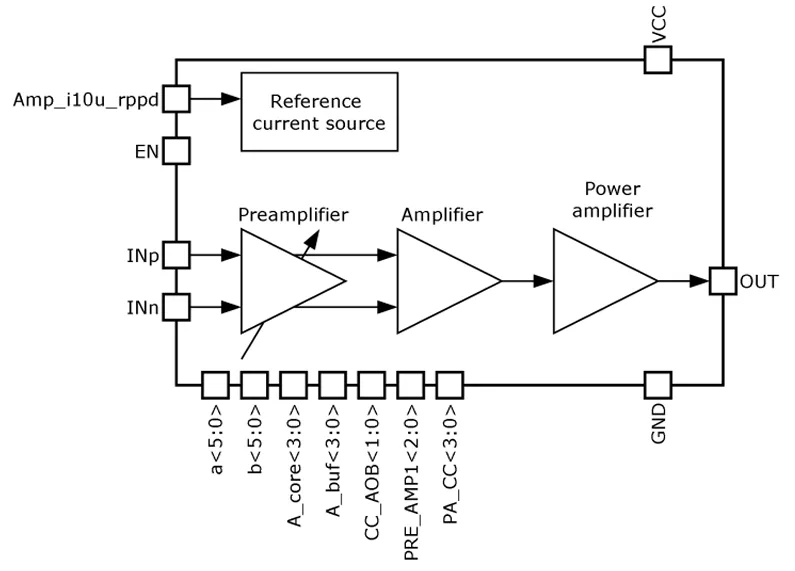

130iHP_PA_03 block diagram
Applications
- Portable transmitters
- Portable transceivers
- Mobile communication devices
What’s Included?
- Schematic or NetList
- Abstract model (.lef and .lib files)
- Layout view (optional)
- Behavioral model (Verilog)
- Extracted view (optional)
- GDSII
- DRC, LVS, antenna report
- Test bench with saved configurations (optional)
- Documentation
