0.035... 100 MHz intermediate-frequency amplifier
IFA consists of 6-stage amplifier with tunable gain, AGC system, linear output buffer for differential analog output.
Overview
IFA consists of 6-stage amplifier with tunable gain, AGC system, linear output buffer for differential analog output.
Gain is sequentially reduced from the last stage to the first stage. This method allows to keep a low noise figure in wide gain range.
The IFA is designed using TSMC 65 nm CRN65LP technology.
Key features
- TSMC 65 nm CRN65LP technology
- Differential inputs, outputs
- High frequency 0.035 – 100 MHz
- High linearity
- Automatic gain control (AGC) system
- AGC detector threshold adjustment in the digital mode
- Portable to other technologies (upon request)
Block Diagram

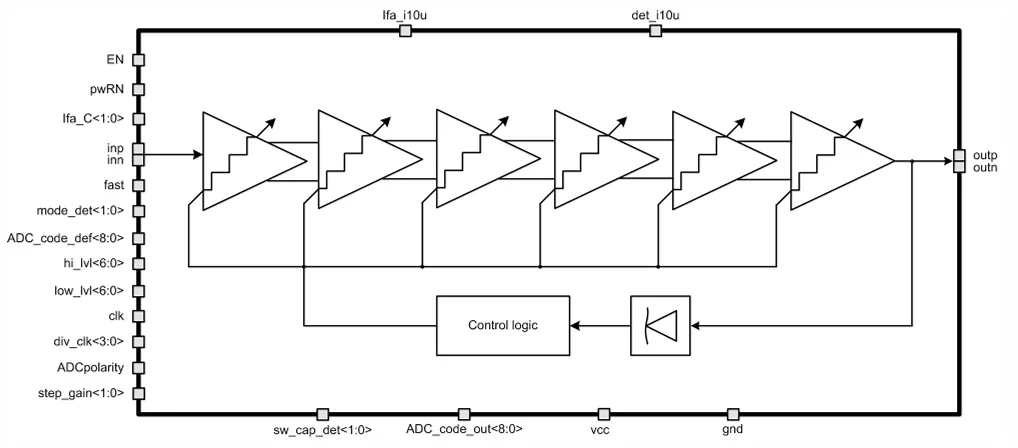

065TSMC_IFA_06 block diagram
Applications
- Point-to-point data transmission
- Multidrop buses
- Clock distribution
- Backplane receiver
- Backplane data transmission
- Cable data transmission
What’s Included?
- Schematic or NetList
- Abstract model (.lef and .lib files)
- Layout view (optional)
- Behavioral model (Verilog)
- Extracted view (optional)
- GDSII
- DRC, LVS, antenna report
- Test bench with saved configurations (optional)
- Documentation
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| TSMC | 65nm | GP | Silicon Proven |
Specifications
Identity
Part Number
065TSMC_IFA_06
Vendor
NTLab
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
Lithuania
