Vendor: Altera Category: Video Transport

LVDS Tunneling Protocol and Interface (LTPI) IP

LVDS Tunneling Protocol and Interface (LTPI) is a soft IP introduced in the DC-SCM 2.0 Specification to facilitate the tunneling …

Contact Provider Request Datasheet

Overview

LVDS Tunneling Protocol and Interface (LTPI) is a soft IP introduced in the DC-SCM 2.0 Specification to facilitate the tunneling of low-speed signals between the host platform module (HPM) and secure control module (SCM) through the low-voltage differential signaling (LVDS) interfaces.

Next-Gen Protocol for DC-SCM 2.0

The LTPI interface is designed for tunneling various low-speed signals between the Host Processor Module (HPM) and the Secure Control Module (SCM). It can be implemented with two FPGA or CPLD devices for configurations with typical BMC devices.

Both HPM and SCM work together to manage and secure communication within a system by tunneling control signals over the LVDS interface within the system.

Key features

  • Compliant with OCP DC-SCM 2.0 LTPI 1.0 specifications.
  • Supports all speed-grade configurations for the Agilex™ 5 devices.
  • Supports up to five channel aggregation and disaggregation.
  • Supports GPIO, I2C, UART, OEM, and data channel aggregations.
  • Supports link training for reliable link operation.
  • Supports up to 500 Mbps data rate for all speed-grade configurations in Agilex™ 5 devices.

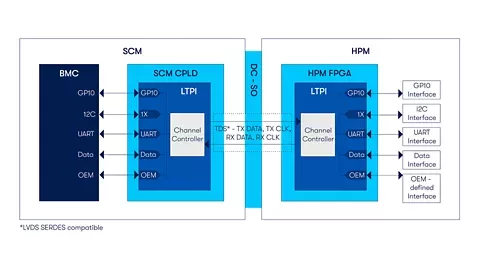

Block Diagram

LVDS Tunneling Protocol and Interface (LTPI) IP block diagram

Applications

  • Data Centers: LTPI communicates between Host Processor Modules (HPM) and Secure Control Modules (SCM), enabling efficient control signal management and real-time data transfer.
  • Embedded Systems: Ideal for embedded systems requiring efficient control plane expansion and low-latency signal transmission.
  • High-Speed Video Streaming: LTPI can be used for high-speed video streaming applications, demonstrating its adaptability beyond traditional use cases.
  • FPGA-Based Designs: LTPI is well-suited for FPGA and CPLD implementations, providing scalable, low-latency transport mechanisms for various control signals

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
LVDS Tunneling Protocol and Interface (LTPI) IP
Vendor
Altera

Provider

Altera
HQ: USA
Altera, an Intel Company, provides leadership programmable solutions that are easy-to-use and deploy in applications from the cloud to the edge, offering limitless AI possibilities. Our end-to-end broad portfolio of products including FPGAs, CPLDs, Intellectual Property, development tools, System on Modules, SmartNICs and IPUs provide the flexibility to accelerate innovation. Our innovation of programmable logic started in 1983 in Silicon Valley. In 1984, Altera unveiled the world’s first programmable logic device capable of being programmed, erased, and reprogrammed altering the future of innovation.
