DisplayPort 1.4 FEC Receiver (Rx)
The DisplayPort Forward Error Correction (FEC) Receiver IP core implements Reed-Solomon FEC and symbol interleaving as specified …
Overview
The DisplayPort Forward Error Correction (FEC) Receiver IP core implements Reed-Solomon FEC and symbol interleaving as specified by the VESA DisplayPort 1.4 specification. Forward Error Correction is required to ensure glitch-free Display Stream Compression (DSC) bitstream transport.
Solution for High-Performance External Displays, UHD TV, USB-C/DisplayPort Accessories
Key features
- VESA DisplayPort 1.4 compliant
- Reed-Solomon RS (254,250) FEC, 10-bit symbols
- Two-way interleaving for 1-, 2- and 4-lane modes (4-lane mode requires 2 FEC IP core instances)
- DisplayPort main 8b/10b encoder included (Tx only)
- Status and control can be done with signals or optionally via an integrated APB register module (Rx)
- Single unified APB interface supports 4-lane mode (Rx)
- Performance monitoring and statistics counters (Rx)

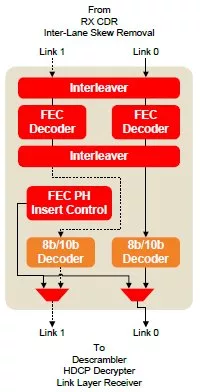

Block Diagram
DP1.4-FEC-RX block diagram
Benefits
- IP customization and integration services available on request
- Multi-project licenses available
- UVM verification bindable modules
Applications
- UHD monitors
- DisplayPort 1.4 products
- USB Type-C products
- UHD TVs
What’s Included?
- Encrypted RTL source code IP core
- Functional and structural coverage reports
- Comprehensive integration guide
- Technical support and maintenance updates
Specifications
Identity
Part Number
DP1.4-FEC-RX
Vendor
Rambus, Inc.
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
USA
