USB 2.0 Host Controller
The USB 2.0 Host Controller IP Core is a 32-bit Avalon/AXI/AHB interface compliant core and supports ULPI interface.
Overview
The USB 2.0 Host Controller IP Core is a 32-bit Avalon/AXI/AHB interface compliant core and supports ULPI interface. It supports High Speed (HS), Full Speed (FS) and Low Speed (LS) modes.
IP core has been implemented in Verilog HDL and its functionality has been verified using different test cases in simulation environment as well as on hardware. It is provided as ready to use component and hence can be easily integrated in system.
Key features
- Supports Low Speed (1.5 Mbps), Full Speed (12 Mbps) and High Speed (480 Mbps) modes
- Supports Control, Bulk and Interrupt transfers
- Contains two different interface for Control Port and Data Port to improve Clock Domain Crossing (CDC) performance
- Supports Asynchronous Avalon/AXI/AHB clock interface
- Enables you to run CPU interface at clock frequency independent of ULPI bus
- Supports SPLIT transfer
- Optimized TD (Transfer Descriptor) structure
- Configurable memory depth
- Enables you to reduce resource utilization depending on application needs
- Supports UTMI + Low Pin interface (ULPI) interface
- Meets Design Assistant guidelines
- Mass storage class speed performance
- Upto 14 MBPS speed for read operation
- Upto 11 MBPS speed for write operation
Block Diagram

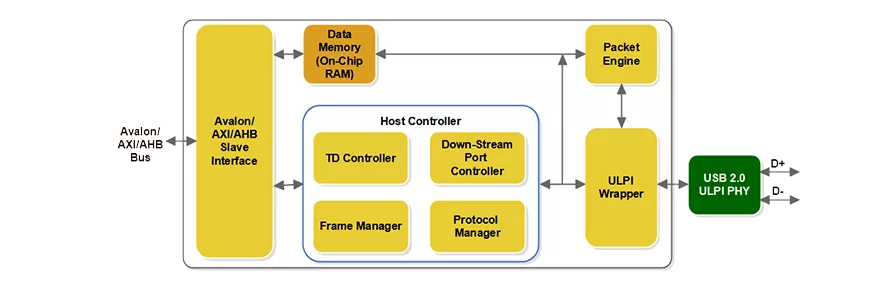

IPRUSB2SFP004 block diagram
Applications
- Set-up Box
- Printer
- Television
- Music system
- Mass storage
Specifications
Identity
Part Number
IPRUSB2SFP004
Vendor
System Level Solutions, Inc.
Type
Silicon IP
Files
