USB 2.0 Device with FIFO Interface (USB20HF)

USB 2.0 device, FIFO interface (USB20HF) IP Core provides FIFO interface for endpoints and ULPI interface for Host communication.

Contact Provider Request Datasheet

Overview

USB 2.0 device, FIFO interface (USB20HF) IP Core provides FIFO interface for endpoints and ULPI interface for Host communication. It supports 15 IN and OUT endpoints as per the USB standards which are configurable in Bulk, Interrupt and Isochronous modes as per the requirement. The core supports High Speed (480 Mbps), Full Speed (12 Mbps) and Low Speed (1.5 Mbps) functionality. It comes with three pre-configured endpoints - Control, Bulk IN, and Bulk OUT.

The core has been optimized for different FPGAs and its functionality has been verified on the hardware using EDA tools.

Key features

  • Supports HighSpeed (480Mbps), FullSpeed (12Mbps) and LowSpeed (1.5Mbps) USB operation
  • Support ULPI interfaces
  • Supported FIFO interface for endpoint communication
  • Operated without processor
  • Preconfigured for 3 endpoints1
    • CONTROL
    • BULK IN
    • BULK OUT
  • Supports Bulk, Isochronous and Interrupt transfers
  • Hardware Based USB Enumeration
  • Supports different FPGAs
  • Optimized resource count
  • Implemented in System verilog RTL

Block Diagram

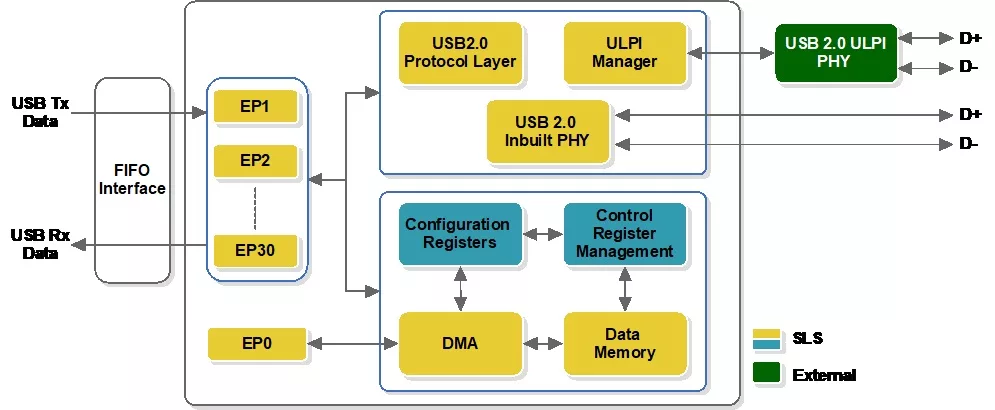

IPRUSB2SFP002 block diagram

Benefits

  • Complete solution comprising of core, software and board for easy and quick implementation
  • Reduced risk with proven, compliant technology
  • Premier direct support from SLS IP designers
  • Low system and license cost
