USB 1.1 Device, Software Based Enumeration (USB11SR)

The USB 1.1 Device, Software Based Enumeration IP Core is RAM based USB 1.1 device core with 32-bit Avalon interface.

Contact Provider Request Datasheet

Overview

The USB 1.1 Device, Software Based Enumeration IP Core is RAM based USB 1.1 device core with 32-bit Avalon interface. The core supports Full Speed (12 Mbps) functionality and Low Speed (1.5 Mbps) functionality can be added as per customer request with additional charges. The core supports three preconfigured Control, Bulk IN and Bulk OUT endpoints. It can be configurable for up to 15 IN/OUT endpoints on customer request on chargeable basis. Each configurable endpoints has an endpoint controller that supports Interrupt, Bulk and Isochronous transfers.

The core has been optimized for Intel (formerly Altera) FPGAs and its functionality has been verified on the hardware with Quartus II. The package includes ModelSim precompiled library for core simulation and verification.

Key features

  • Verilog Implementation on RTL level
  • Supports Full-speed (12 Mbps) transfer rate
  • Software based USB enumeration Support
  • Avalon Interconnection compliant
  • Preconfigured for 3 endpoints
    • CONTROL
    • BULK IN
    • BULK OUT
  • Configurable for up to 15 IN/OUT endpoints which supports Bulk,Isochronous and Interrupt functionality on customer request at additional cost
  • Cyclic redundancy code (CRC) checking/generation
  • Data toggle synchronization mechanism
  • Optimized for use with Altera NiosII embedded processor

Block Diagram

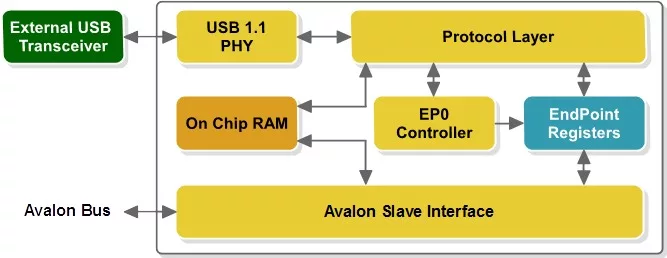

IPRUSB1SFP002 block diagram

Specifications

Identity

Part Number
IPRUSB1SFP002
Vendor
System Level Solutions, Inc.
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Contact System Level Solutions, Inc.

Learn more about USB IP core
