BrisbaneSilicon publishes Beta Release of its Lumorphix Processor IP Core
BrisbaneSilicon has published a Beta Release of its Lumorphix Processor IP.
Vendor:
Brisbane Silicon
Category:
Displayport
Ultra-small footprint, static framing, DPTx 1.4 IP core
Ultra-small footprint, static framing, DPTx 1.4 IP core
Key features
- DisplayPort 1.4 compatible.
- Ultra-small footprint (1k LUT minimum, 3.5k LUT maximum).
- Hardware proven on AMD/Xilinx 28nm FPGA fabric.
- Ships with an example project which demonstrates the following:
- Link initialization at 5.4 Gbps.
- Initialization of the DPTx core.
- Output a test video pattern with 4k60 framing.
- Commercial or Academic licenses available.

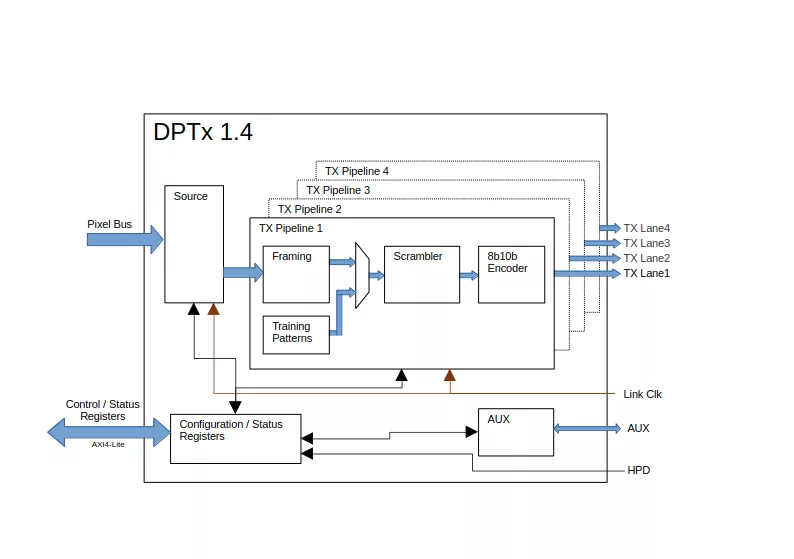

Block Diagram
DPTx 1.4 IP block diagram
Benefits
- Ultra-small footprint (1k LUT minimum, 3.5k LUT maximum).
What’s Included?
- Netlist or Obfuscated RTL.
Specifications
Identity
Part Number
DPTx 1.4 IP
Vendor
Brisbane Silicon
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
Australia
Learn more about Displayport IP core
Brisbane Silicon publishes DPTx 1.4 IP Core
Today we are very excited to announce that Brisbane Silicon will add a DPTx 1.4 IP core to its IP library suite.
Frequently asked questions about DisplayPort IP cores
What is Ultra-small footprint, static framing, DPTx 1.4 IP core?
Ultra-small footprint, static framing, DPTx 1.4 IP core is a Displayport IP core from Brisbane Silicon listed on Semi IP Hub.
How should engineers evaluate this Displayport?
Engineers should review the overview, key features, supported foundries and nodes, maturity, deliverables, and provider information before shortlisting this Displayport IP.
Can this semiconductor IP be compared with similar products?
Yes. Buyers can compare this product with similar semiconductor IP cores or IP families based on category, provider, process options, and structured technical specifications.
