Vendor: Truechip Solutions Category: Displayport

eDP 1.5 Verification IP

The eDP 1.5 Verification IP provides an effective & efficient way to verify the components interfacing with the eDP interface of …

Contact Provider Request Datasheet
Verification IP View all specifications

Overview

The eDP 1.5 Verification IP provides an effective & efficient way to verify the components interfacing with the eDP interface of an ASIC/FPGA or SoC. The eDP VIP is fully compliant with Standard eDP Version 1.5 specifications from VESA This VIP is a lightweight VIP with an easy plug-and-play interface so that there is no hit on the design time and the simulation time.

Key features

  • Fully compliant with VESA Embedded DisplayPort (eDP) Standard 1.5 Specification
  • Supports power saving feature:- Panel Self Refresh features PSR/PSR2, PR, Adaptive sync, and backlight control.
  • Supports HDCP version 1.4, 2.2 and 2.3
  • Supports Alternative Scrambler Seed Reset (ASSR)
    • TPS4 with ASSR is supported
  • Supports Advanced Link Power Management (ALPM)
    • Power Down states (Sleep and Standby)
    • Wake state (fast wake timing)
    • Supports updated ALPM requirement for DSC in eDP devices
  • Supports all standard link rates for eDP
  • Supports 1, 2 and 4 lanes of operation on both eDP devices
  • Supports Aux Frame Sync for Active Video Timing Synchronization
  • Supports GTC-based video timing synchronization
  • Supports PSR (Panel Self Refresh) features
    • PSR Entry/Exit operation
    • Error Management/Recovery mechanism
  • Supports PSR2 operations
    • Self-refresh with selective updates supported
    • PSR2 States has supported
    • PSR2 commands and data transport supported
  • Supports PSR SDP
  • Supports Multi-SST Operations (MSO)
    • Multi-SST Operation with Two SST Links,One Lane Each (2x1)
    • Multi-SST Operation with Two SST Links, Two Lanes Each (2x2)
    • Multi-SST Operation with Four SST Links, One Lane Each (4x1)
  • Support for display stream compression
  • Supports Display Backlight Control by the way of AUX
  • Support transport of Multi-touch data over AUX
  • Supports all operations of Main Link , Aux and HPD signalling
  • Callback support in BFM to provide user control
  • Supports Dynamic as well as Static Error Injection scenarios
  • Strong Protocol Monitor with real time exhaustive programmable checks
  • Supports dynamically configurable modes
  • On-the-fly protocol checking using protocol check functions, static and dynamic assertions
  • Built-in Coverage analysis.
  • Graphical analyzer to show transactions for easy debugging

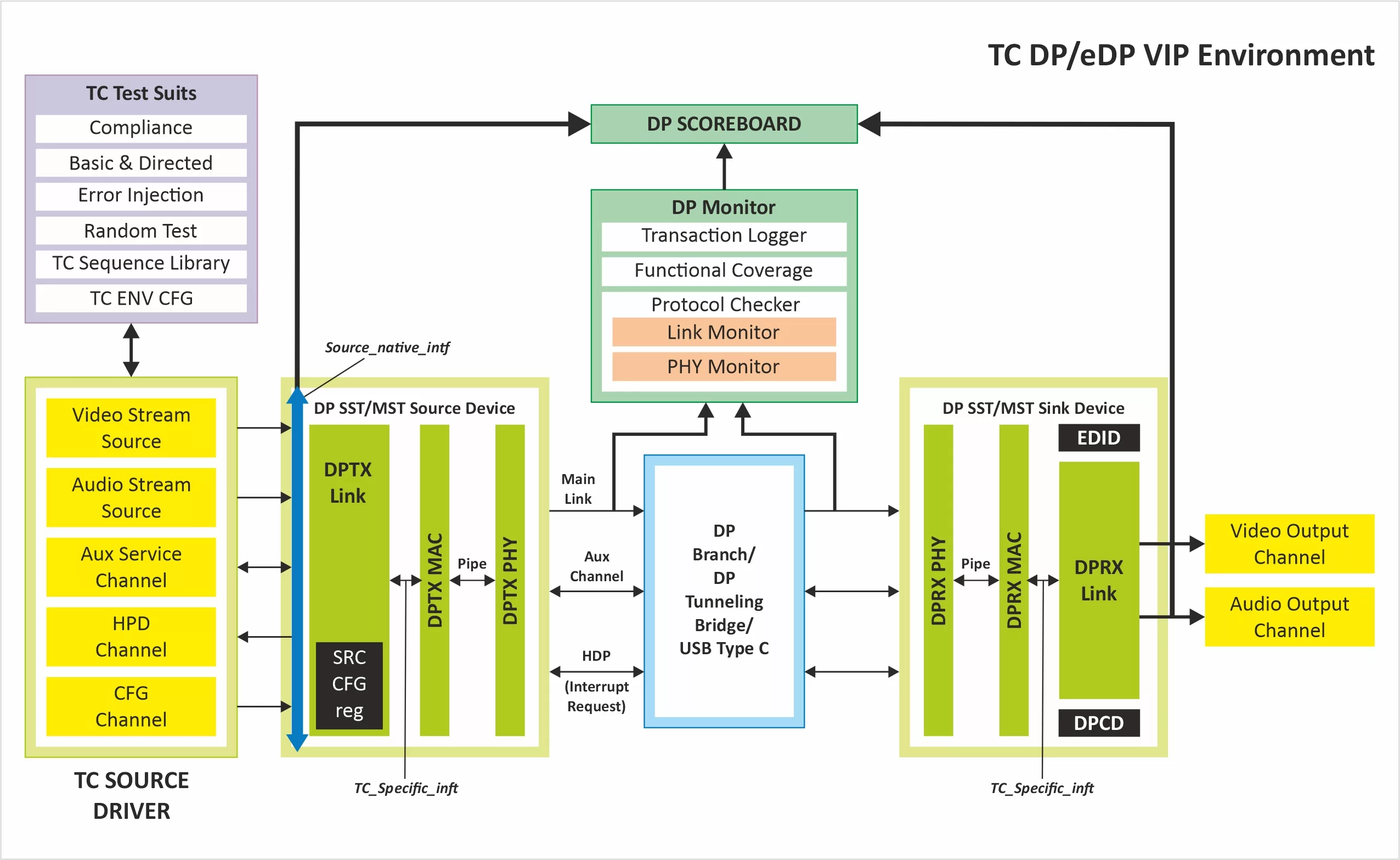

Block Diagram

eDP 1.5/1.4b block diagram

Benefits

  • Available in native System Verilog (UVM/OVM/ VMM) and Verilog
  • Unique development methodology to ensure the highest levels of quality
  • Availability of Compliance & Regression Test Suites
  • 24X5 customer support
  • Unique and customizable licensing models
  • Exhaustive set of assertions and coverage points with connectivity examples for all the components
  • Consistency of interface, installation, operation, and documentation across all our VIPs
  • Provide complete solutions and easy integration in IP and SoC environment

What’s Included?

  • DisplayPort eDP BFM's for:
    • Source - Link Layer
    • Source - MAC Layer
    • Source - PHY Layer
    • Sink - Link Layer
    • Sink - MAC Layer
    • Sink - PHY Layer
    • Branching Devices
  • DisplayPort layered monitor & scoreboard
  • Test Environment & Test Suite:
    • Basic and Directed Protocol Tests
    • Random Tests
    • Error Scenario Tests
    • Assertions & Cover Point Tests
    • Compliance Test Suite
    • User Test Suite
  • Integration guide, user manual, and release notes
  • GUI analyzer to view simulation packet flow

Specifications

Identity

Part Number
eDP 1.5/1.4b
Vendor
Truechip Solutions
Type
Verification IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.
