055UMC_OSC_01 is a crystal oscillator with Pierce architecture.

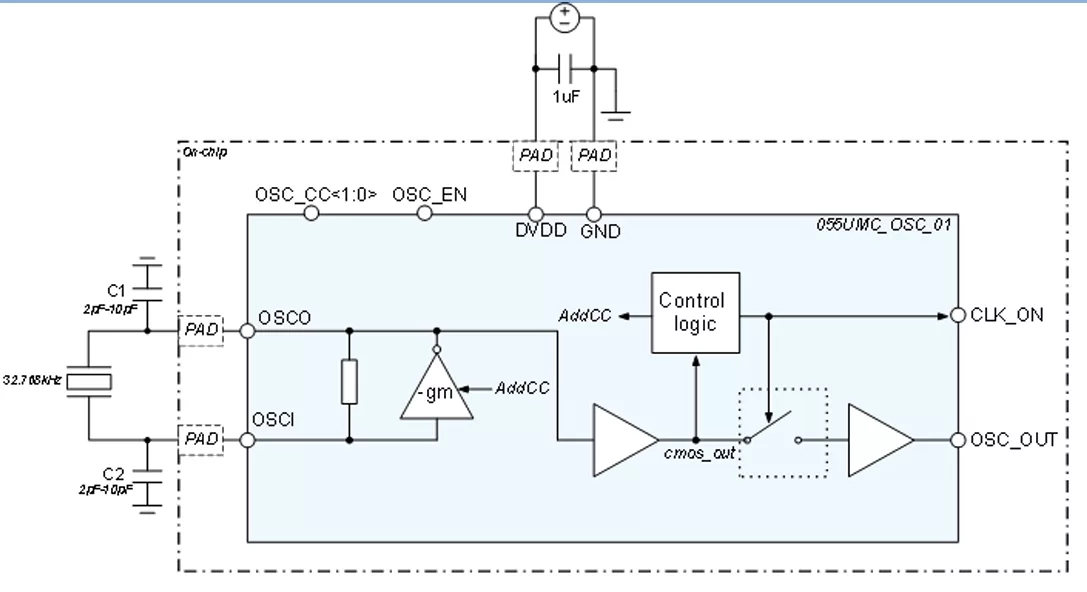

055UMC_OSC_01 is a crystal oscillator with Pierce architecture. The block implementation is optimized for very low power consumption.
The block consists of a feedback amplifier and buffers for generating CMOS output signal.
Current consumption adjustment is implemented by changing the feedback amplifier current. Typical tuning range of total current consumption is from 0.25µA to 0.4 µA.
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| UMC | 55nm | 55nm 550 nm | Pre-Silicon |
Note: some files may require an NDA depending on provider policy.
Ultra low power 32.768 kHz crystal oscillator is a Oscillator IP core from NTLab listed on Semi IP Hub. It is listed with support for umc Pre-Silicon.
Engineers should review the overview, key features, supported foundries and nodes, maturity, deliverables, and provider information before shortlisting this Oscillator IP.
Yes. Buyers can compare this product with similar semiconductor IP cores or IP families based on category, provider, process options, and structured technical specifications.
