What is UART Serial Interface Controller?
UART Serial Interface Controller is a UART IP core from ChipCraft listed on Semi IP Hub.
Vendor:
ChipCraft
Category:
UART
UART Serial Interface Controller
The CC-UART-APB is a synthesisable Verilog model of a UART serial interface controller.
Overview
The CC-UART-APB is a synthesisable Verilog model of a UART serial interface controller. The UART core can be efficiently implemented on FPGA and ASIC technologies.
Key features
- UART-compatible interface
- AMBA APB3 bus
- Full duplex
- Custom baud rate generation
- 8x, 16x oversampling
- 5, 6, 7, 8, 9 bits data
- 1, 2 stop bits
- LSB or MSB mode
- Configurable parity
- Hardware flow control
- RS485 mode
- Maskable interrupts
- Dedicated upstream and downstream DMA interface
- Fully synthesizable synchronous design with positive edge clocking
- DFT ready
Block Diagram

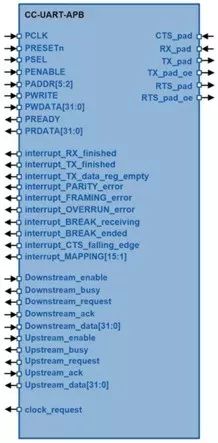

CC-UART-APB block diagram
Benefits
- Synthesizable RTL Verilog source code
- Technology independent IP Core
- Suitable for FPGA and ASIC
- Silicon and FPGA proven
- Easy SoC integration
- Full implementation and maintenance support with individual approach
- Flexible licensing scheme
What’s Included?
- Verilog RTL source code
- Verification suite
- Datasheet and integration guide
- C-header file
- Constraints
- Technical support
Specifications
Identity
Part Number
CC-UART-APB
Vendor
ChipCraft
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
Poland
