Vendor: Synopsys, Inc. Category: Root Of Trust

tRoot F022 Hardware Secure Module (w/ ARC EM22FS)

The ASIL B certified Synopsys tRoot™ Hardware Secure Module (HSM) for Automotive augments its comprehensive root of trust securit…

Contact Provider Request Datasheet

Overview

The ASIL B certified Synopsys tRoot™ Hardware Secure Module (HSM) for Automotive augments its comprehensive root of trust security solution with a suite of automotive documentation and hardware safety mechanisms to protect against malicious security attacks and random and systematic safety faults.

The tRoot HSM for Automotive includes a broad range of safety mechanisms such as dual-core lockstep, memory ECC, register EDC, parity, watchdog, self-checking comparators, bus and MPU protection, and dual rail logic. It incorporates an ASIL D compliant low-power ARC processor.

The tRoot HSM for Automotive is developed with an ASIL D systematic development flow and is designed and certified by TÜV-SGS as ISO-26262 ASIL-B compliant for random hardware faults. The solution is provided with a complete suite of ISO 26262 documentation, including safety manual, DFMEA/FMEDA/DFA analysis reports, quality manual, and development interface report, making it a fully ASIL certified solution.

Key features

  • ASIL B Certified tRoot Hardware Secure Module provides the Root of Trust for a system, protects against malicious attacks, and prevents random and systematic faults
  • Meets stringent ISO 26262 safety process and documentation requirements (ASIL D systematic grade)
  • Fully programmable solution safeguards against evolving threats with high-grade security
    • Scalable cryptography acceleration from CPU custom instructions to cryptographic cores with side channel protection
    • NIST-compliant TRNG
    • Secure Instruction Controller with side channel protection for secure external memory access and runtime tamper detection
  • Evita Full/Medium/Low support
  • tRoot HSM software includes secure applications SDK, NIST-validated crypto library, SecureShield runtime and DSP libraries, device drivers and reference designs
  • Delivered with development and manufacturing tools

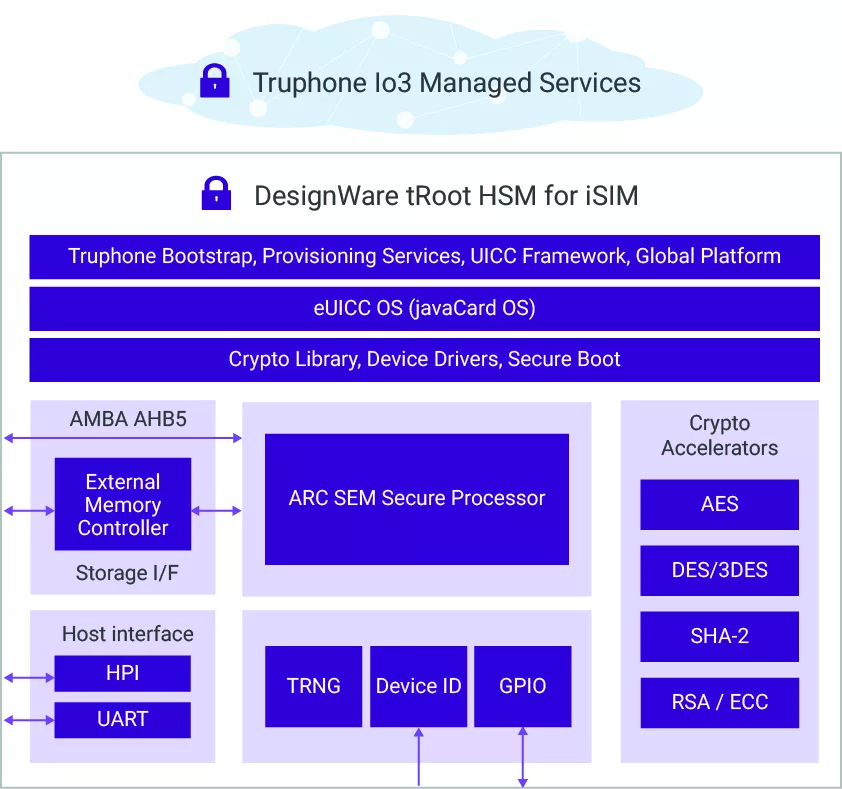

Block Diagram

dwc_troot_f022_hsm block diagram

Specifications

Identity

Part Number
dwc_troot_f022_hsm
Vendor
Synopsys, Inc.
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Synopsys, Inc.
HQ: USA
Contact Synopsys, Inc.
