Temperature Sensor

The asicNorth ANTEMPSNS0100 is a fully integrated, high resolution temperature sensor ADC with selectable outputs of 9-bits, 16-b…

GlobalFoundries 180nm View all specifications

Overview

The asicNorth ANTEMPSNS0100 is a fully integrated, high resolution temperature sensor ADC with selectable outputs of 9-bits, 16-bits, 17-bits, or 18
bits. The ANTEMPSNS0100 has a temperature sensing range of 165C (-40C to 125C) with an accuracy of 7C and resolutions between 1.024 C and 0.002C. The conversion rate can also be controlled by internal clock dividing circuits.

Key features

  • Integrated diodes for temperature sensing
  • Temperature Range: -40C to 125C
  • Selectable Outputs of 9b, 16b, 17b, or 18b
  • Resolution: 1.024C, 0.008C, 0.004C, 0.002C
  • Accuracy: ±7C
  • Programmable Sampling Rates
  • Integrated digital comb filter
  • Process: Global Foundries 7WL
  • Area = 0.286mm2 (784um x 365um)

Block Diagram

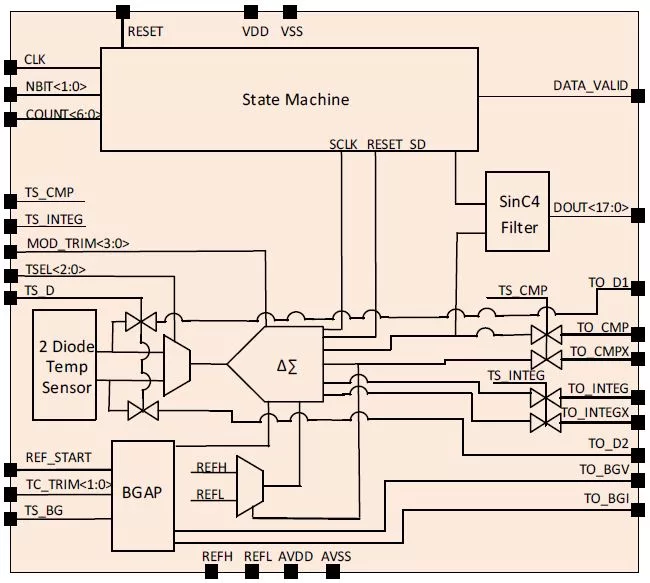

ANTEMPSNS0100 block diagram

Benefits

  • full integrated
  • high resolution
  • configurable

Applications

  • Networking
  • HVAC
  • Appliances
  • Medical IC
  • Handheld Devices
  • System-On-a-Chip

What’s Included?

  • Specification
  • GDS
  • CDL
  • LEF
  • Verilog model
  • .LiB
  • Application documentation
