TCP/TCPSW Verification IP

The TCP Verification IP provides an effective & efficient way to verify the components interfacing with TCP interface of an IP or…

Contact Provider Request Datasheet
Verification IP View all specifications

Overview

The TCP Verification IP provides an effective & efficient way to verify the components interfacing with TCP interface of an IP or SoC. The TCP VIP is fully compliant with RFC-9293 specification. This VIP is lightweight with an easy plug -and- play interface so that there is no hit on the design cycle time.

Key features

  • Provides Ethernet fully compliant to 802.3-2018 supporting all media independent interfaces for (1/10/25/40/50/100/200/400/800 G)
  • Provides TCP as per RFC-9293 specification
    • Supports TCP connection establishment and closing connection
    • Supports TCP Flow Control
    • Supports Checksum Calculation and checksum error detection
    • Supports TCP Header creation and parsing
    • Supports Separation of TCP/nonTCP packets Encodes and decodes TCP headers
    • Supports unicast delivery of data
    • Bidirectional/unidirectional dataflow is supported over TCP connections
  • Supports clock data recovery(CDR).
  • Supports Ipv4, Ipv6 Pkts
  • Supports test pattern generation and checking.
  • Supports Management data Input/output registers.
  • Supports full-duplex operation.
  • Callback support in all Layers to provide user control.
  • Rich set of configuration and parameters.
  • Supports Dynamic as well as Static Error Injection scenarios.
  • Built-in Coverage analysis. Ø Graphical analyzer to show transactions for easy debugging.

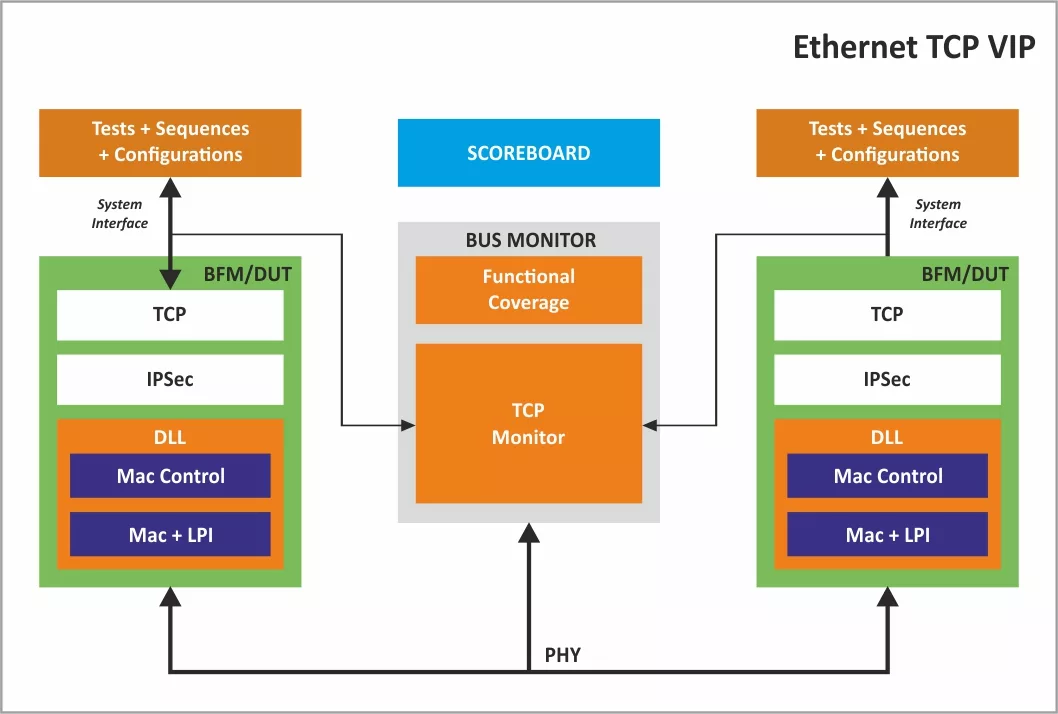

Block Diagram

TCP/TCPSW block diagram

Benefits

  • Available in native System Verilog (UVM/OVM/ VMM) and Verilog
  • Unique development methodology to ensure the highest levels of quality
  • Availability of Compliance & Regression Test Suites
  • 24X5 customer support
  • Unique and customizable licensing models
  • Exhaustive set of assertions and coverage points with connectivity examples for all the components
  • Consistency of interface, installation, operation, and documentation across all our VIPs
  • Provide complete solutions and easy integration in IP and SoC environment

What’s Included?

  • Deliverables TCP BFM's for
    • TCP layer
    • IP layer (optional)
    • MAC layer (optional)
  • TCP monitors and scoreboard
  • Mac monitors and scoreboard (optional)
  • Test environment and Test Suite-
    • Basic and Directed Protocol Tests
    • Random Tests
    • Error Scenario Tests
    • Assertions & Cover Point Tests
    • User Test Suite
  • Integration Guide, User Manual, and Release Note
  • GUI analyzer to view simulation packet Flow

Specifications

Identity

Part Number
TCP/TCPSW
Vendor
Truechip Solutions
Type
Verification IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.
