SPMI Host and Device IP

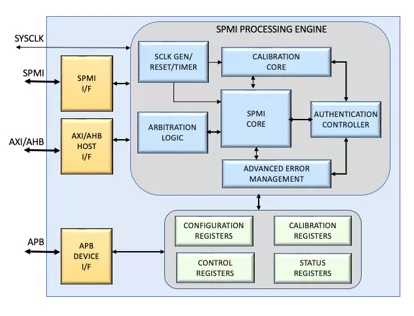

The SPMI Host and Device IP (Configurable Controller Cores) implements MIPI SPMI2.0 protocols. It is designed to be configured as a SPMI Host, SPMI Device Controller IPs.

The SPMI Host and Device IP is used to reduce power consumption in electronic devices to improve battery life and increase power budget for features such as color screens and back lights by accurately monitoring power performance level and control various supply voltages.

Verification

The SPMI Host and Device IP has been rigorously verified and has been made production ready. It has been verified through extensive simulation and compliance check using multiple 3rd party Verification IPs. The Coverage report is available upon request. The IPs are verified during Synthesis, place and route and are ready. This design can be ported to an ASIC or an FPGA design.

Support

The design core is delivered within 90 days from purchase. Thirty days of phone and email technical support is included. Optional maintenance support options are available for purchase.

MIPI SPMI 2.0 Specifications Support

•  Implements both SPMI 2.0 Host and SPMI 2.0 Device protocols
•  Configurable to be used as a SPMI Host2.0 or SPMI Device 2.0 IP
•  Supports both High-Speed (HS) 32KHz to 26MHz and Low Speed (LS), 32KHz to 15Mhz modes
•  Supports multiple SPMI Host Arbitration modes (SCLK Handover, Arbitration Levels) and SPMI Device Arbitration Mode (Device request Holds)
•  Supports Arbitration capable and non-arbitration capable Hosts as well as Request capable Device and Non-request capable Devices

Advanced Features

•  Calibration Core supports Bus Initialization, Bus disconnection, and Bus monitoring
•  SPMI Host can operate as a Bus-owner, Connected Host or as a disconnected Host
•  SPMI Host can decode all command frames including those marked as optional-to determine accurately end of sequence

RAS Features

•  Advanced Error Management unit support Parity Errors in Command frames, Address frames and Data frames
•  Error handling mitigates errors due to Unsupported address, Unsupported Commands, Parity Error in Address and Data Frames
•  Supports window-based SPMI traffic monitoring for debug

• System Verilog RTL Source Code
• A simplified Testbench with simulation models to run initial set of tests after release
•  Synthesizable Netlist
•  Synthesis Scripts and exception lists
•  Timing Report
•  Protocol Compliance & Coverage Report
•  Sample Firmware with Drivers
•  Application Notes
