SpaceWire CODEC
The GRSPW_CODEC core implements a SpaceWire encoder-decoder with a 9-bit wide FIFO host interface in each direction.
Overview
The GRSPW_CODEC core implements a SpaceWire encoder-decoder with a 9-bit wide FIFO host interface in each direction. The core complies to the SpaceWire standard (ECSS-E-ST-12C).
Data is transmitted and received through 9-bit wide FIFOs with configurable depth. The core also provides an interface for transmitting and receiving Time-codes as well as configuring the link properties such as the link rate.
For critical space applications, a fault-tolerant (FT) version of GRSPW_CODEC is available with full SEU protection of all RAM blocks.
Key features
- Full implementation of SpaceWire standard (ECCS-E-ST-50-12C)
- Simple 9-bit wide FIFO host interface
- Redundant port
- SEU protection fault-tolerance
Block Diagram

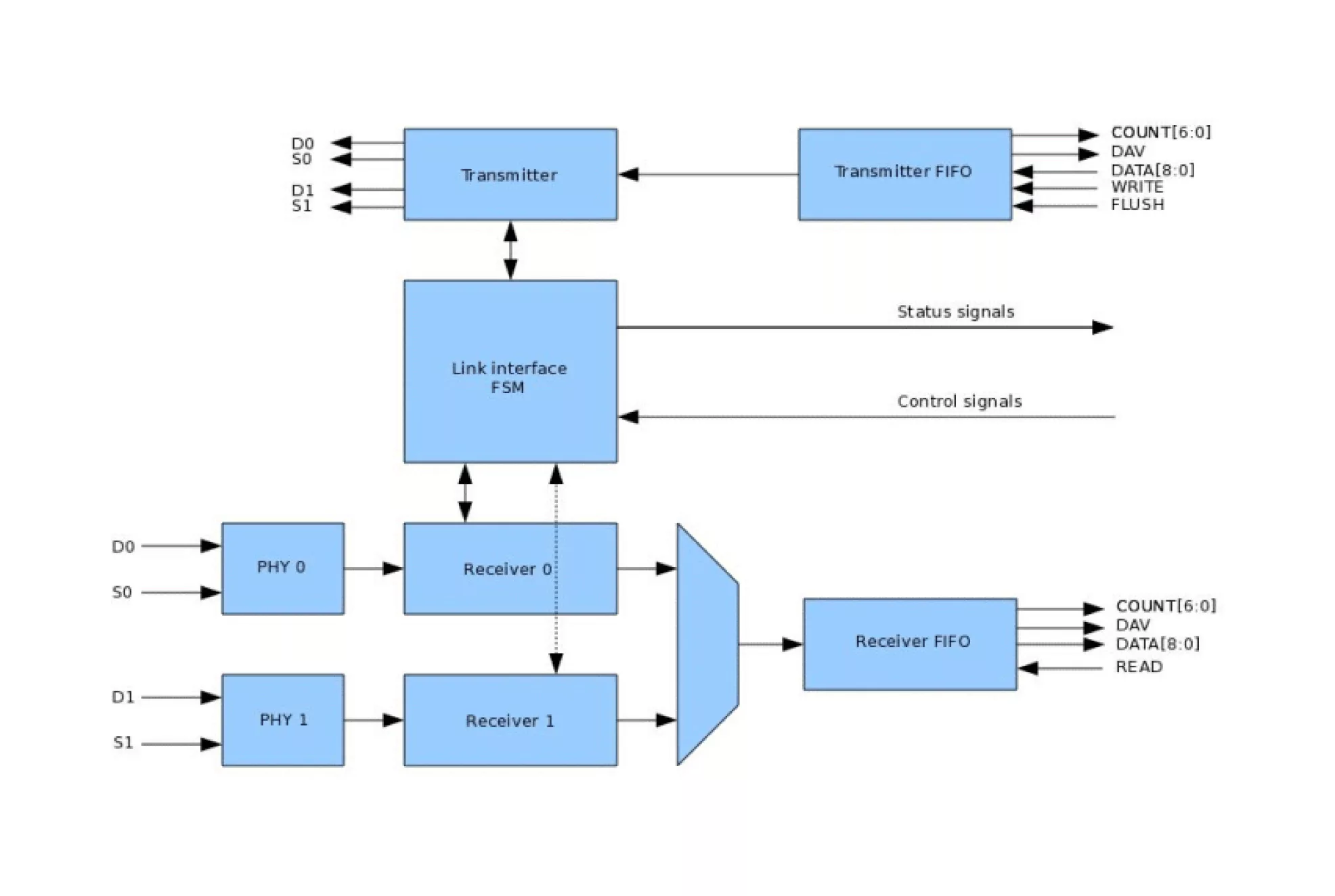

GRSPW_CODEC block diagram
Benefits
- Tested and verified against several other SpaceWire cores
- High frequency
- Easily portable between FPGA and ASIC
- Low-cost project license
- SEU protection of all RAM blocks
What’s Included?
- Encrypted RTL
- Stand-alone testbench
- User's manual
Specifications
Identity
Part Number
GRSPW_CODEC
Vendor
Frontgrade Gaisler
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
Frontgrade Gaisler
HQ:
Sweden
Cobham Gaisler provides IP cores and supporting development tools for embedded processors based on the SPARC architecture. The key product is the LEON synthesizable processor model together with a full development environment and a library of IP cores (GRLIB). Our personnel have extended design experience, and have been involved in establishing European standards for ASIC and FPGA development. Aeroflex Gaisler has a long experience in the management of ASIC development projects, and in the design of flight quality microelectronic devices. The company specializes in digital hardware design (ASIC/FPGA) for both commercial and aerospace applications.
