Vendor:
NTLab
Category:
PVT Monitor
Process/Voltage/Temperature Sensor (Supply voltage 3.3V/1.2V)
PVT Detector is a unique solution intended to continuously monitor IC status at several on-die locations.
Overview
PVT Detector is a unique solution intended to continuously monitor IC status at several on-die locations. It is able to detect manufacturing process deviation, perform voltage and die temperature measurement. PVT detector consists of PVT module and voltage/temperature sensor units. PVT module is a calculation center that contains process detector units and two embedded voltage/temperature sensor units (the first one is connected to AVDD and the second one – to DVDD). Also it is able to maintain up to 14 external voltage/temperature sensor units.
IP technology: UMC 55nm eFlash CMOS technology.
Key features
- UMC 55nm eFlash CMOS technology
- Temperature measurement range -40°C ÷ +85°C
- Voltage measurement range 2V÷3.6V
- High accuracy temperature and voltage measurements
- Process detector for regular-voltage and high-voltage threshold MOS transistors
- Two embedded voltage/temperature sensors
- Up to 14 remote voltage/temperature sensors

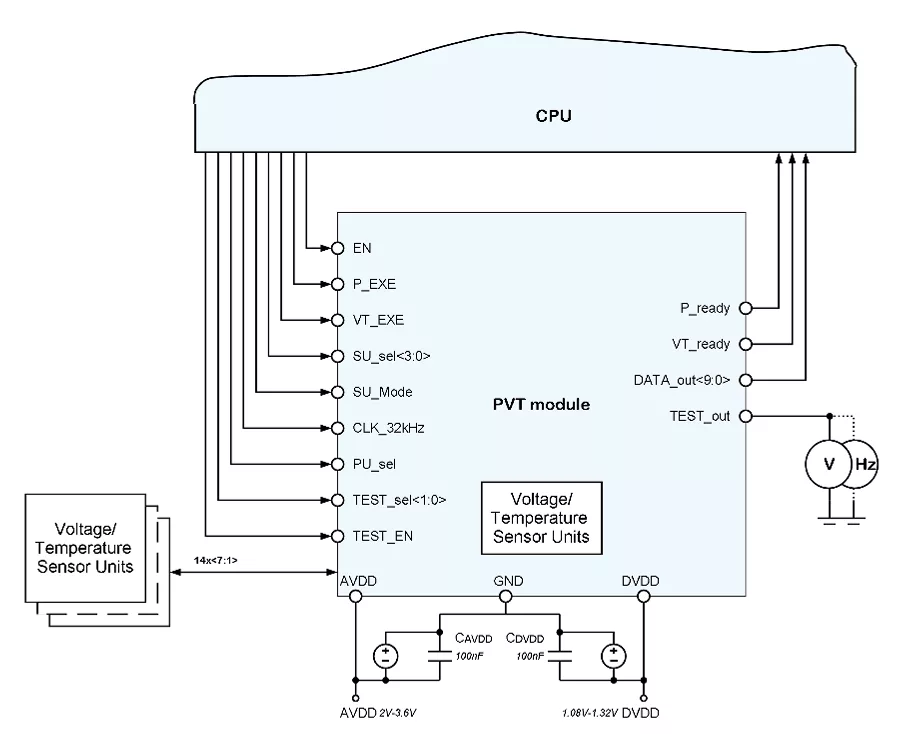

Block Diagram
055UMC_PVT_01 block diagram
Applications
- Die temperature monitoring
- Supply voltage low battery indication
- Process deviation detection
- Pseudo static analog digitization
- System performance detection
What’s Included?
- Schematic or NetList
- Abstract view (.lef and .lib files)
- Layout (optional)
- Behavioral model (for functional verification)
- Extracted view (optional)
- GDSII
- DRC, LVS, antenna report
- Test bench with saved configurations (optional)
- Documentation
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| UMC | 55nm | 55nm 550 nm | Silicon Proven |
Specifications
Identity
Part Number
055UMC_PVT_01
Vendor
NTLab
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
Lithuania
