PVT Detector is a unique solution intended to continuously monitor IC status at several on-die locations.
Overview
PVT Detector is a unique solution intended to continuously monitor IC status at several on-die locations. It is able to detect manufacturing process deviation, perform voltage and die temperature measurement. PVT Detector consists of PVT module, voltage/temperature sensor units and trimming units. PVT module is a calculation center that contains process detector units and is able to maintain up to 8 voltage/temperature sensor units.
Key features
- TSMC CMOS 40nm
- High accuracy temperature and voltage measurements
- Process detector for all-voltage threshold MOS transistors
- Up to 8 remote temperature/voltage sensors
- Voltage measurement range 0.8V ÷ 1.35V
- IO supply voltage 2.4V÷2.6V
- Core supply voltage 1.0V÷1.2V
Block Diagram

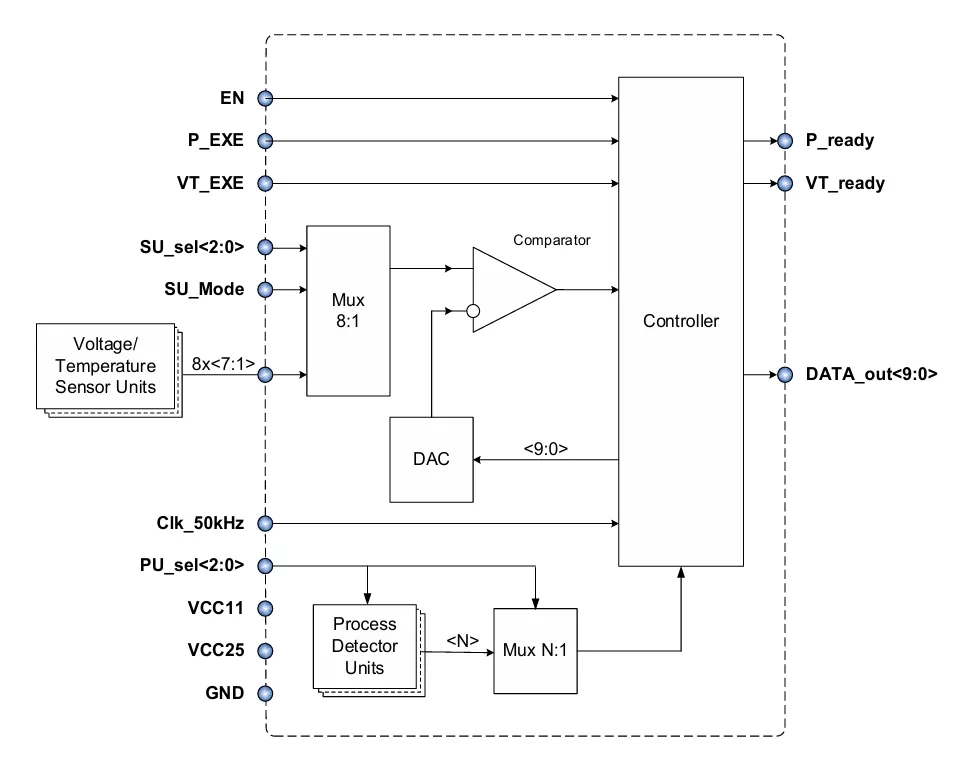

040TSMC_PVT_01 block diagram
Applications
- Die temperature monitoring
- Core voltage low battery indication
- Process deviation detection
- Pseudo static analog digitization
- System performance detection
What’s Included?
- Schematic or NetList
- Abstract view (.lef and .lib files)
- Layout (optional)
- Behavioral model (for functional verification)
- Extracted view (optional)
- GDSII
- DRC, LVS, antenna report
- Test bench with saved configurations (optional)
- Documentation
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| TSMC | 40nm | G | Silicon Proven |
Specifications
Identity
Part Number
040TSMC_PVT_01
Vendor
NTLab
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
Lithuania
Learn more about PVT Monitor IP core
