PVT Detector is a unique solution intended to continuously monitor IC status at several on-die locations.
Overview
PVT Detector is a unique solution intended to continuously monitor IC status at several on-die locations. It is able to detect manufacturing process deviation, perform voltage and die temperature measurement.
PVT Detector consists of PVT module as a calculation center with embedded process detector units, and voltage/temperature sensor units. PVT module is able to maintain up to 16 external voltage/temperature sensor units for Core voltage measurement from 0.8V to 1.0V. IP technology TSMC 28HPC CMOS 28nm.
Silicon area: PVT module – 0.113mm2;
sensor unit – 0.000404mm2.
Key features
- TSMC 28nm 28HPC CMOS
- High accuracy temperature and voltage measurements
- Process detector for all-voltage threshold MOS transistors
- Up to 16 remote temperature/voltage sensors
- Voltage measurement range 0.8V÷1.0V
- IO supply voltage 1.62V÷1.98V
- Core supply voltage 0.81V÷0.99V
Block Diagram

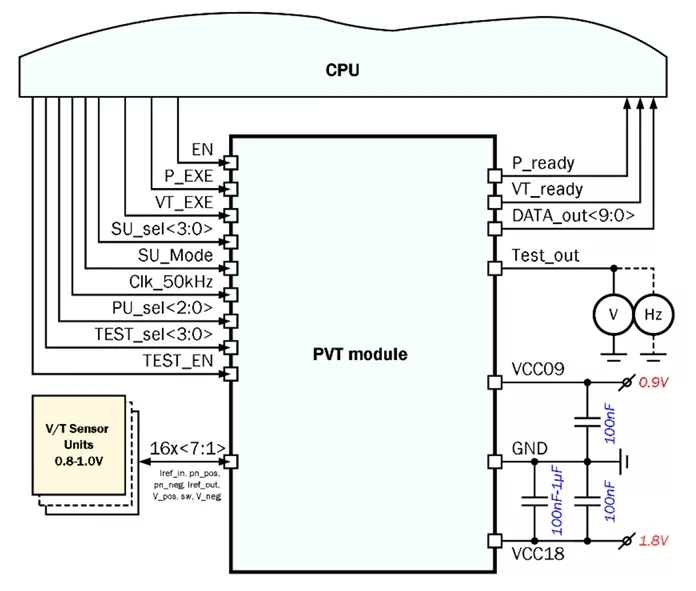

028TSMC_PVT_01 block diagram
Applications
- Die temperature monitoring
- Core and IO voltage low battery indication
- Process deviation detection
- Pseudo static analog digitization
- System performance detection
What’s Included?
- Schematic or NetList
- Abstract view (.lef and .lib files)
- Layout (optional)
- Behavioral model (for functional verification)
- Extracted view (optional)
- GDSII
- DRC, LVS, antenna report
- Test bench with saved configurations (optional)
- Documentation
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| TSMC | 28nm | HPC | Silicon Proven |
Specifications
Identity
Part Number
028TSMC_PVT_01
Vendor
NTLab
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
Lithuania
Learn more about PVT Monitor IP core
