Vendor:
NTLab
Category:
PVT Monitor
Process/Voltage/Temperature Sensor (Supply voltage 1.8V/0.9V)
PVT Detector is a unique solution intended to continuously monitor IC status at several on-die locations.
Overview
PVT Detector is a unique solution intended to continuously monitor IC status at several on-die locations. It is able to detect manufacturing process deviation, perform voltage and die temperature measurement.
PVT Detector consists of PVT module as a calculation center with embedded process detector units, and voltage/temperature sensor units. PVT module is able to maintain up to 16 external voltage/temperature sensor units for Core voltage measurement from 0.8V to 1.0V. IP technology TSMC 28HPC+ CMOS 28nm.
Total area:
- PVT module – 0.140mm2;
- sensor unit – 0.0005mm2;
- trimming unit1 – 0.00019mm2; trimming unit2 – 0.00031mm2.
Key features
- TSMC 28nm 28HPC+ CMOS technology
- High accuracy temperature and voltage measurements
- Process detector for all-voltage threshold MOS transistors
- Up to 16 remote temperature/voltage sensors
- Voltage measurement range 0.8V÷1.0V
- IO supply voltage 1.62V÷1.98V
- Core supply voltage 0.81V÷0.99V

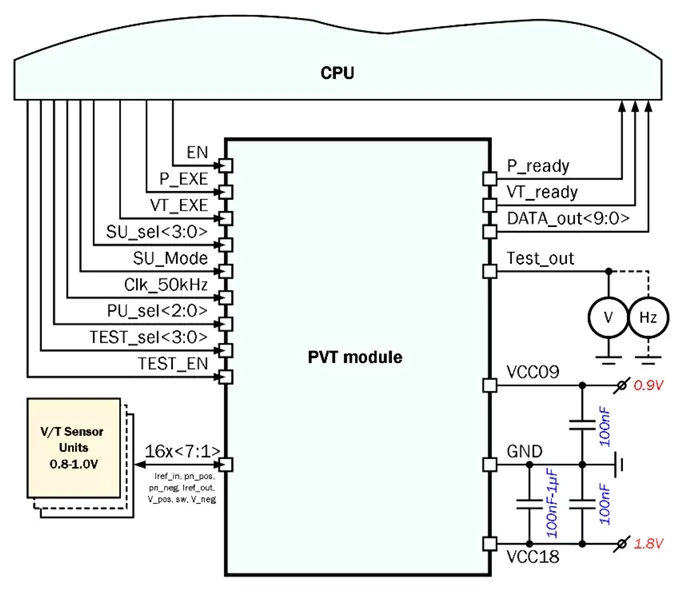

Block Diagram
028TSMC_PVT_02 block diagram
Applications
- Die temperature monitoring
- Core and IO voltage low battery indication
- Process deviation detection
- Pseudo static analog digitization
- System performance detection
What’s Included?
- Schematic or NetList
- Abstract view (.lef and .lib files)
- Layout (optional)
- Behavioral model (for functional verification)
- Extracted view (optional)
- GDSII
- DRC, LVS, antenna report
- Test bench with saved configurations (optional)
- Documentation
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| TSMC | 28nm | HPC+ | Silicon Proven |
Specifications
Identity
Part Number
028TSMC_PVT_02
Vendor
NTLab
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
Lithuania
