Rapid IO - Physical Layer Interface Core

The RapidIO™ is a packet - switched interconnect intended primarily as an intra - system interfaces for a chip-to-chip and board-to-board communications at Gigabyte per second performance levels. Developed as an open standard, the RapidIO™ architecture addresses the needs of present and future systems. RapidIO™ is focused as a processor, memory and memory mapped I / O interfaces optimized for use inside the chassis.

This high performance low pin - count packet switched system level interconnect provides highly reliable error handling scheme whilst transferring packets between processing elements via the RapidIO™ Fabric.

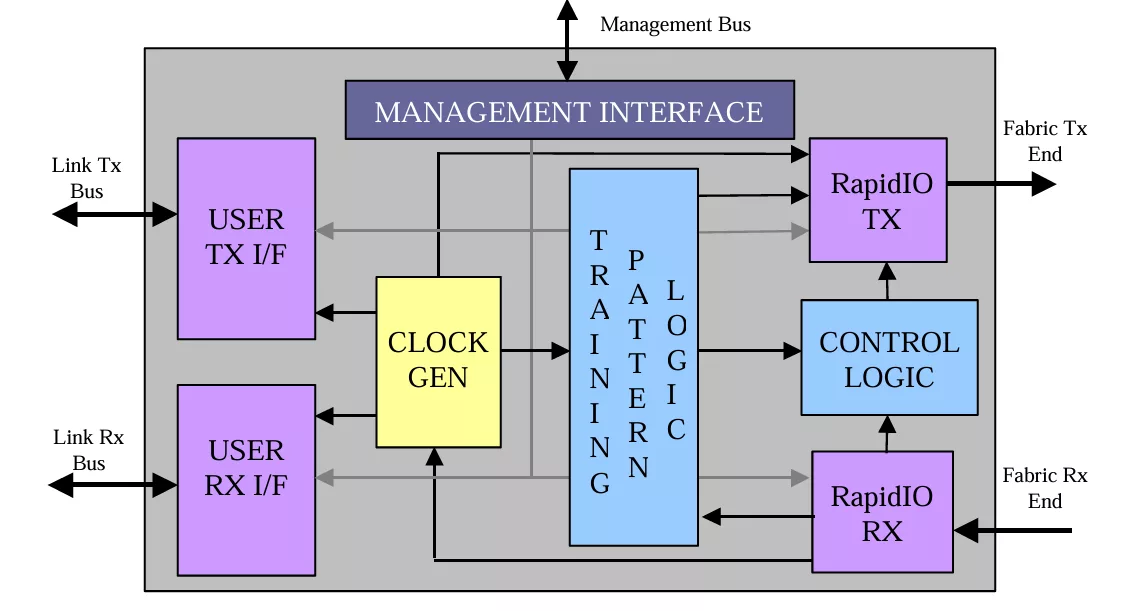

In the diagram below, the User Application sends data in chunks of 32 bits to the core, which composes and queues the packets in the RapidIO™ format, before transmission to the Fabric. Similarly, the Fabric sends RapidIO™ packets to the chip, which in turn queues and sends data to the User Application via a Microcontroller Interface.

Product Specifications :

• Fully synthesizable Register Transfer Level (RTL) Verilog HDL core
• Test Bench Environment : Verilog
• Targeted FPGA Xilinx Virtex - II Family
• Clock Frequency : 62.5 - 125 MHz
• LP - LVDS Buffers (for Fabric end interface)

Product Options :

• Adaptations :
  • 16 / 32 bit PCI or AMBA Host Interface Possible.
  • AMBA Possible.
• Add - ons : Nil.

• Fully Compliant with RapidIO™ Interconnect Specification Rev 1.1, 3 / 2001 prescribed by RapidIO™ Trade Association.
• 32 bit standard Host / Link Interface.
• Full Duplex Independent Transmit and Receive Data Path.
• Dual Data Rate (DDR) : 62.5 - 125 MHz.
• Auto scaling 8 / 16 bit Ports.
• Respects 32 bit boundaries.
• Rx Queuing : 16 X 128 X 32 or 8 Kbytes of internal buffer.
• Tx Queuing : 8 X 128 X 32 or 4 Kbytes of internal buffer.
• Maximum Packet Length : 276 bytes.
• Minimum Packet Length : 8 bytes.
• Supports a Very Highly Reliable Error Handling Scheme.
• CRC - 16 Polynomial.
• Incorporates Intermediate CRC for Packet Length of 80 bytes or greater.
• Upto 8 Unacknowledged Packets.
• 32 Bit Internal Data Path.
• Supports : PACKET RERTY, PACKET NOT ACCEPTED, STOMP, TIME - OF - DAY SYNCHRONIZATION, TRAINING and THROTTLE.
• Separate Management Interface (CSRs / CARs).
• Data Rate 250 - 500 Mbps per LVDS Pin Pair; Upto 8 Gbits per sec throughput.
• Outputs 32 bits of Data to User Interface.
• Full Control of User Interface bus by user.
• Tx and Rx sections designed for minimum latency between the input and output.
• Smart Bandwidth Utilization (Designed for minimum latency between Link and Fabric, Intelligent EOP avoidance between Back - to - Back Packets).
• Fully automated Test Bench for checking for error - free packets.
• 3 Clock Domains - 1 for Management, 2 for Fabric and Link Interface.

• Fully synthesizable Register Transfer Level (RTL) Verilog HDL core
• Test Bench Environment: Verilog
