PCIe to UART bridge is a IP core which converts PCIe to UART bus interface .
Overview
PCIe to UART bridge is a IP core which converts PCIe to UART bus interface
.
.
Key features
- The following are the main features of the PCIe to UART Controller:
- System Interface.
- 100MHz external reference clock for synchronous clocking of PCI express Interface.
- Supports interface to external active low reset signal.
- PCI Express Interface.
- Compliant with the PCI Express base specification v1.1.
- Lane width supported x1.
- Link speed supported 2.5 Gbps.
- User interface width supported 32-bit.
- PCI Express Application Interface.
- Target only support.
- Memory BAR0 supported for UART controller.
- UART Interface.
- The UART bridge uses IO mapped interface.
- Full duplex asynchronous communication.
- Baud rate of 115200 with a single odd parity, stop & start bit.
- Supports transmit & receive synchronous FIFO of size 16 byte depth.
Block Diagram

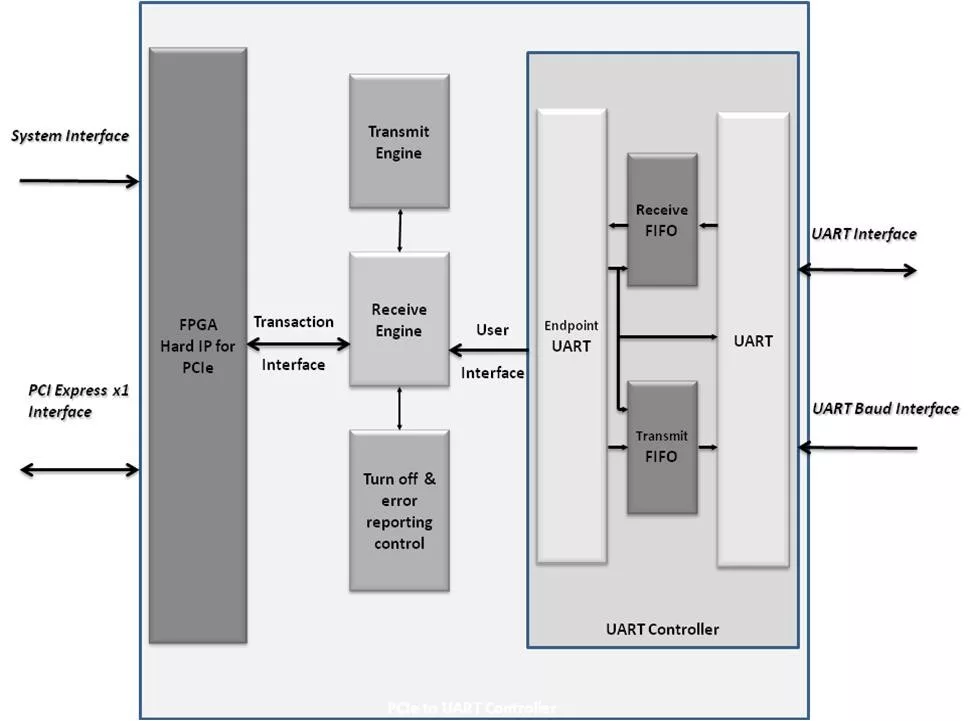

PCIe to UART Bridge block diagram
Benefits
- Compatible with different FPGA Vendors PCIe Hard IP.
- Configurable and ease of use in POS.
Applications
- Used in POS
Specifications
Identity
Part Number
PCIe to UART Bridge
Vendor
iWave Systems Technologies Pvt. Ltd.
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
India
