PCIe 7.0 Controller

The PCI Express® (PCIe®) 7.0 Controller is a configurable and scalable design for ASIC implementations.

Contact Provider Request Datasheet
PCIe 7.0 View all specifications

Overview

The PCI Express® (PCIe®) 7.0 Controller is a configurable and scalable design for ASIC implementations. Optimized for high-bandwidth efficiency at data rates up to 128 GT/s, the controller delivers maximum performance for Data Center, Edge, AI/ML and HPC applications. It is backward compatible to the PCIe 6.0 and 5.0, as well as version 6.2.1 PHY Interface for PCI Express (PIPE) specification.

How the PCIe 7.0 Controller Works

The PCIe 7.0 Controller exposes a highly efficient transmit (Tx) and receive (Rx) interface with configurable bus widths. The controller can be configured to support endpoint, root port, switch port, and dual-mode topologies, allowing for a variety of use models. The provided Graphical User Interface (GUI) Wizard allows designers to tailor the IP to their exact requirements, by enabling, disabling, and adjusting a vast array of parameters. Its flexible architecture supports a variety of use cases, tailored to unique customer needs.

Key features

  • Optimized for high-bandwidth efficiency at data rates up to 128 GT/s
  • Separate native TX/RX data path separating posted/Non posted/completion traffic
  • Handles up to 4 TLPs per cycle
  • Advanced PIPE modes and port bifurcation
  • Supports multiple virtual channels
  • Supports Endpoint, Root-Port, Dual-mode, Switch port configurations
  • Advanced RAS features
  • Optional IDE security with AES-GCM encryption, decryption and authentication
  • Supports AMBA AXI interconnect

Block Diagram

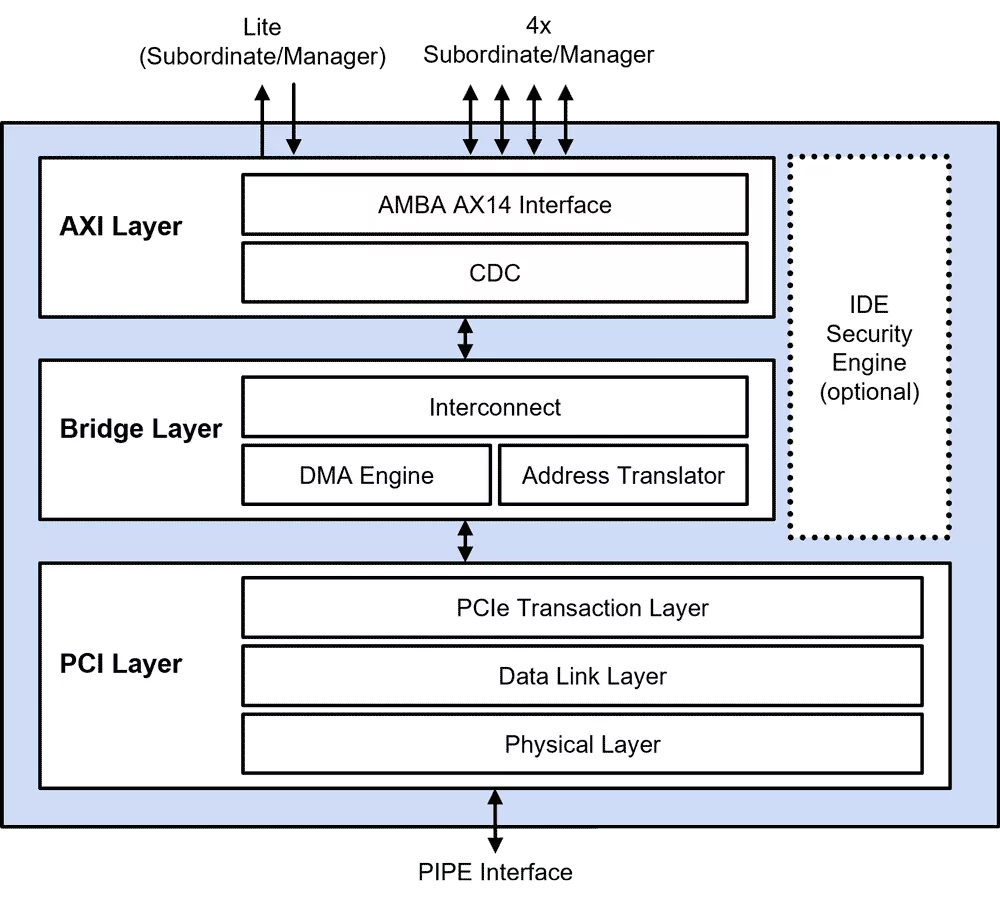

PCIe 7.0 Controller block diagram

What’s Included?

  • IP Files
    • Verilog RTL source code
    • Libraries for functional simulation
    • Configuration assistant GUI (Wizard)
  • Full Documentation
  • Reference Designs
    • Synthesizable Verilog RTL source code
    • Simulation environment and test scripts
    • Synthesis project and DC constraint files (ASIC)

Specifications

Identity

Part Number
PCIe 7.0 Controller
Vendor
Rambus, Inc.
Type
Silicon IP

Standards & Interfaces

PCIe Version
PCIe 7.0

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.
