Vendor: ASICFPGA Category: ISP Image Signal Processor

Multiple Pixel Processing Camera Image Signal Processing Core

Produces high resolution, clear and sharp images by using intelligent and high-performance algorithms.

Overview

The camera image signal processing core produces high resolution, clear and sharp images by using intelligent and high-performance algorithms. The ISP core uses the minimum logic in spite of using the intelligent and complex algorithm. The ISP core is provided by Verilog source or FPGA netlist with the document and the testbench for developing FPGA and ASIC.

Compare ISP core version

Function HDR Star Pro AI
Clamping ✓ ✓ ✓ ✓
Lens Shading correction ✓ ✓ ✓ -
Defect correction ✓ ✓ ✓ ✓
CFA Demosacing ✓ ✓ ✓ ✓
2D+3D Noise reduction ✓ ✓ - -
2D Noise reduction - - ✓ ✓
Color correction ✓ ✓ ✓ ✓
Gamma correction ✓ ✓ ✓ ✓
RGB to YUV ✓ ✓ ✓ ✓
HDR ✓ - - -
WDR ✓ ✓ ✓ -
Edge enhancement ✓ ✓ ✓ -
AWB, AE, AF ✓ ✓ ✓ ✓

Key features

  • Support RGB Bayer and Monochrome image sensor
  • Support 8 ~ 14 bit Bayer data
  • Support image sensor of 256*256 ~ 8192*8192 size
  • Multiple pixel processing of 1, 2 or 4 pixels per clock
  • Support 4Kp60 and 4Kp120 at FPGA devices
  • Support for AXI4-Lite and AXI4-Stream interfaces
  • Defect Correction
  • Lens Shading Correction
  • High quality Demosaicing
  • Advanced 2D and 3D Motion Adaptive noise reduction
  • Color correction
  • Gamma correction
  • HDR processing for two or three Multiple exposure images
  • WDR (Shadow/Highlight compensation, back light compensation)
  • Edge enhancement
  • Improved dynamic range with AE of 17x15 windows and RGB Histograms
  • Improved White balance with AWB of 128x96 windows and Color temperature detection
  • Auto focus
  • Saturation, contrast and brightness control

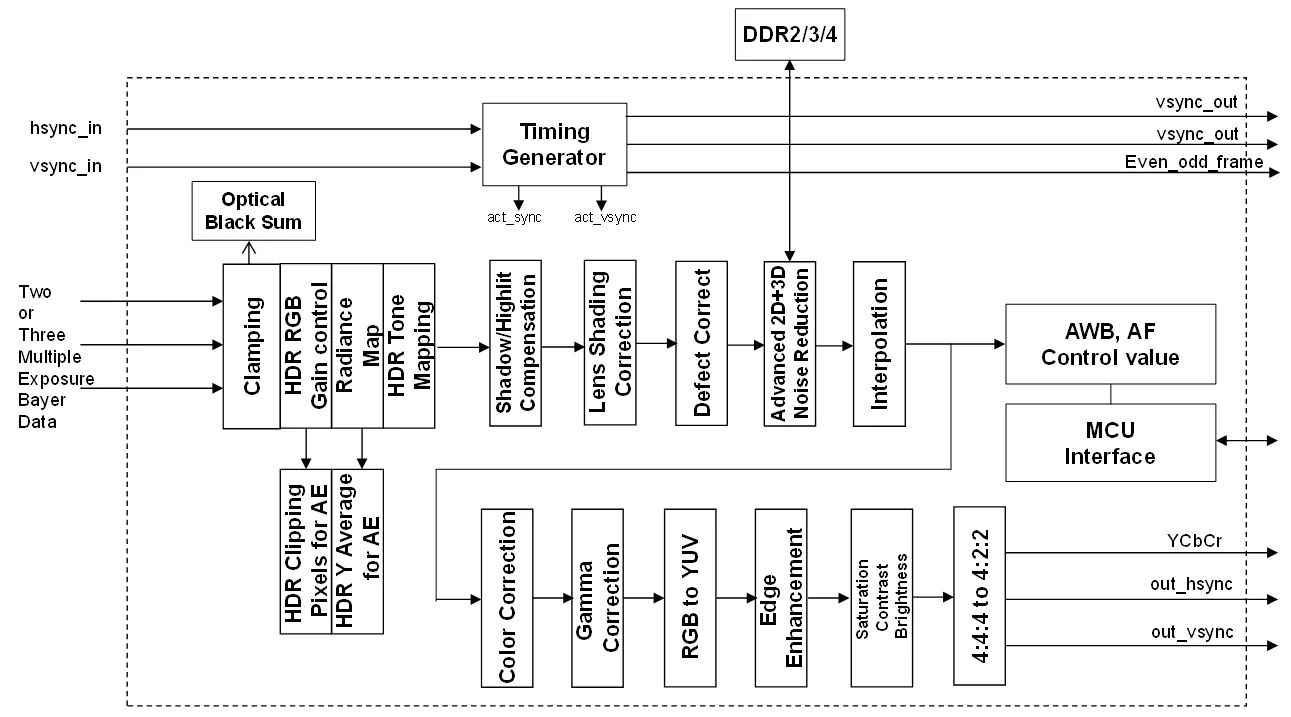

Block Diagram

What’s Included?

FPGA Level License version

  • FPGA level netlist
  • Full functionality in with no time outs

RTL source Level License version

  • Original Verilog RTL source files
  • Functional simulation support
  • Full functionality in with no time outs

Specifications

Identity

Part Number
ASICFPGA HDR ISP, 4K60P, 4K120P for FPGA
Vendor
ASICFPGA
Type
Silicon IP

Files

Note: some files may require an NDA depending on provider policy.

Provider

HQ: Canada

Learn more about ISP Image Signal Processor IP core

ASICFPGA releases new AI 2D+3DNR core

The AI 2D+3DNR core removes both spatial and temporal noise, including color noise and luminance noise, and keeps edges and fine texture in very low light.
