Vendor: MAXVY Technologies Pvt Ltd Category: MIPI

MIPI SPMI HOST CONTROLLER

The System Power Management Interface is a two wire interface that connects the integrated power controller (PC) of a System-on-C…

Contact Provider Request Datasheet

Overview

The System Power Management Interface is a two wire interface that connects the integrated power controller (PC) of a System-on-Chip (SoC) processor system with one or more Power Management Integrated Circuits(PMIC) voltage regulation systems.

Key features

  • Compliance as per MIPI Alliance Specifiction version 2.0
  • Support SCLK frequency Low Speed - 32kHz to 15MHz
  • Support SCLK frequency High Speed - 32kHz to 26MHz
  • Supported command sequences are
    1. Register 0 Write
    2. Register Write
    3. Register Read
    4. Extended Register Write
    5. Extended Register Read
    6. Extended Register Write Long
    7. Extended Register Read Long
    8. Reset
    9. Sleep
    10. Wakeup
    11. Shutdown
    12. Master write
    13. Master read
    14. Transfer Bus Ownership
  • Support Bus Arbitration
  • Support Parity Check
  • Support of generate parity
  • Register Access using command sequence
  • SCLK Handover

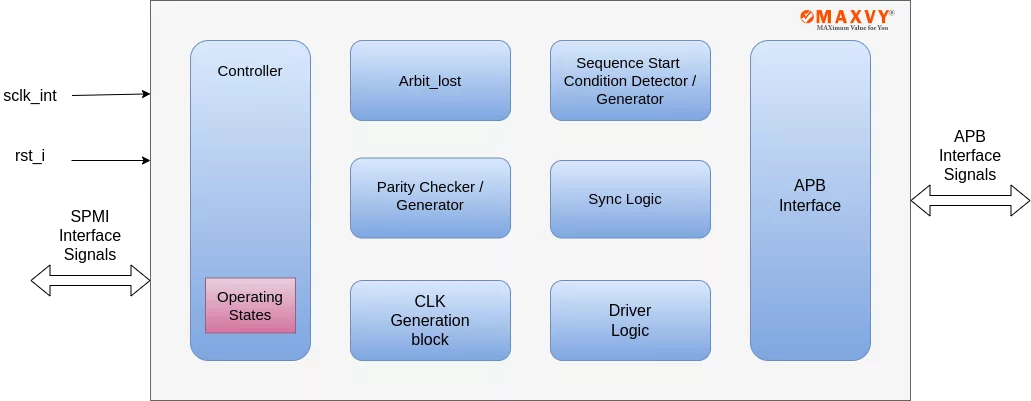

Block Diagram

SPMI HOST Controller block diagram

What’s Included?

  • Verilog Source code.
  • User Guide.
  • IP Integration Guide.
  • Simulation script.
  • Synthesis script.
  • Encrypted UVM Verification Testbench Environment.
  • Basic Testsuite.

Specifications

Identity

Part Number
SPMI HOST Controller
Vendor
MAXVY Technologies Pvt Ltd
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Contact MAXVY Technologies Pvt Ltd
