MIPI-I3C Slave (SDR) RTL Design IP

MIPI I3C slave Controller IP Core is fully compliant with the latest I3C specification and delivers high bandwidth and scalability for integration of multiple sensors into mobile, automotive and IoT system-on-chips (SoCs).

The MIPI I3C slave Controller supports in-band interrupts within the 2-wire interface provides significantly lower pin count, simplifying board design and reducing power and cost of the system.

The MIPI I3C slave Controller IP is fully backward compatible with I2C, allowing designers to future proof their design, and the I3C controller IP operating modes enable systems with several ICs to efficiently connect to all sensors on a single I3C bus.

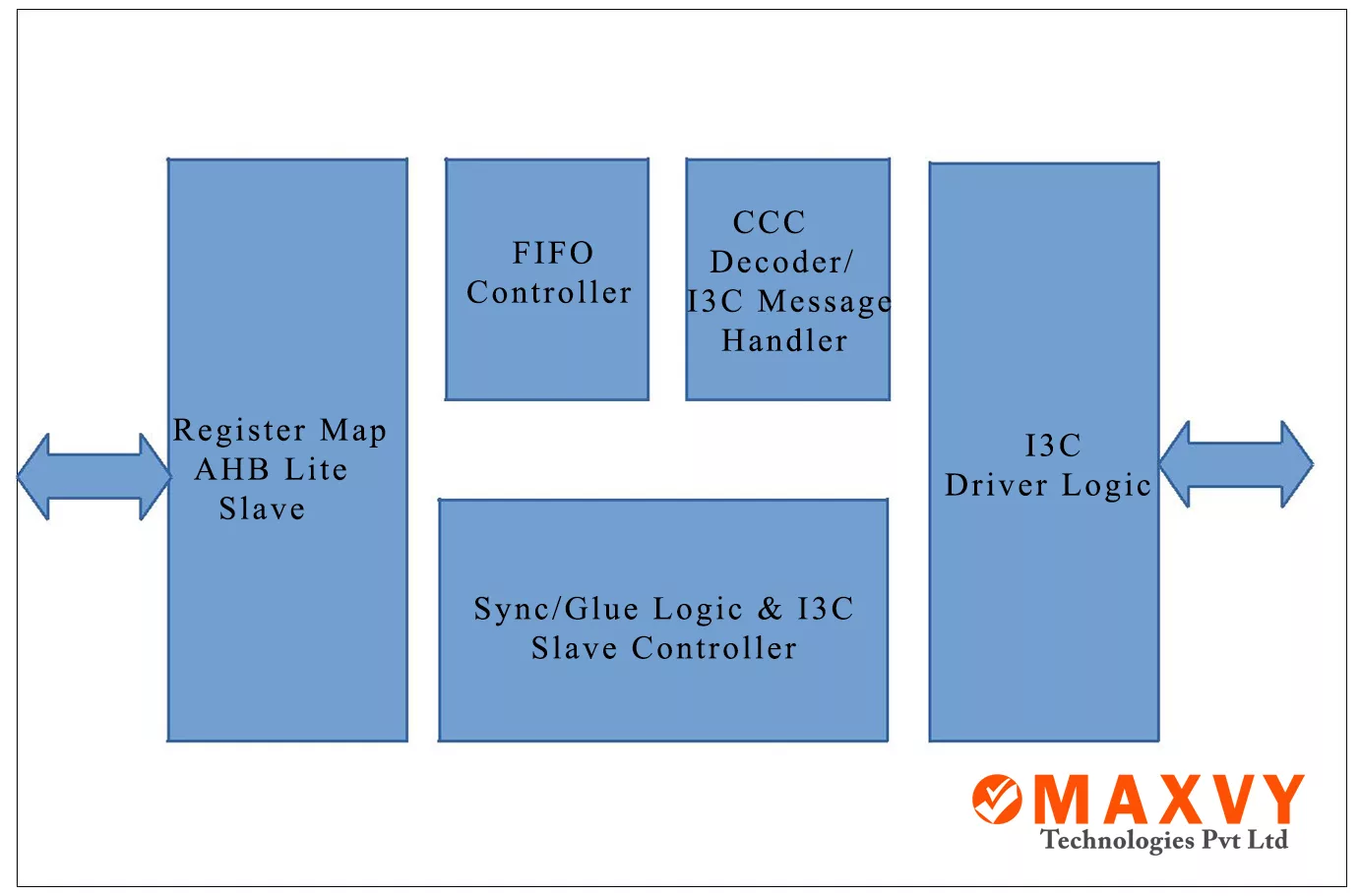

The standard-based ARM® AMBA® Advanced High Performance Bus (AHB) connects the IP to the rest of the SoC offering easy IP integration.

MIPI I3C slave Controller IP is designed to easily integrate into any SoC offering lowest gate count and quickly fit into any Chip development flow.

• Compliance as per Public Release Edition.
• Two wire serial interface up to 12.5 MHz using Push-Pull.
• Dynamic Addressing while supporting Static Addressing for Legacy I2C Devices.
• Support Single Data Rate messaging(SDR).
• Support Broadcast and Direct Common Command Code (CCC) Messages.
• In-Band Interrupt support.
• Hot-Join support.
• Synchronous Timing Support and Asynchronous Time Stamping.

• Verilog Source code.
• User Guide.
• IP Integration Guide.
• Run and Synthesis script.
• Encrypted Verification Testbench Environment.
• Basic Testsuite.
