What is MIPI I3C Basic Slave Controller?
MIPI I3C Basic Slave Controller is a I2C / I3C IP core from MAXVY Technologies Pvt Ltd listed on Semi IP Hub.
Vendor:
MAXVY Technologies Pvt Ltd
Category:
I2C / I3C
MIPI I3C Basic Slave Controller
MIPI I3C(Improved Inter Integrated Circuit) is a two-wire bidirectional serial Bus for sensors communication.
Overview
MIPI I3C(Improved Inter Integrated Circuit) is a two-wire bidirectional serial Bus for sensors communication. The MIPI I3C interface has been developed to ease sensor system design architectures in mobile sensor and IoT / automotive sensor wireless products by providing a fast, low cost, low power.
Key features
- Compliance as per MIPI I3C Basic v1.0.
- Backward compatibility with I2C
- Two wire serial interface up to 12.5 MHz using Push-Pull.
- Dynamic Addressing while supporting Static Addressing for Legacy I2C Devices.
- Support Single Data Rate messaging(SDR).
- Support Broadcast and Direct Common Command Code (CCC) Messages.
- In-Band Interrupt support.
- Hot-Join support.

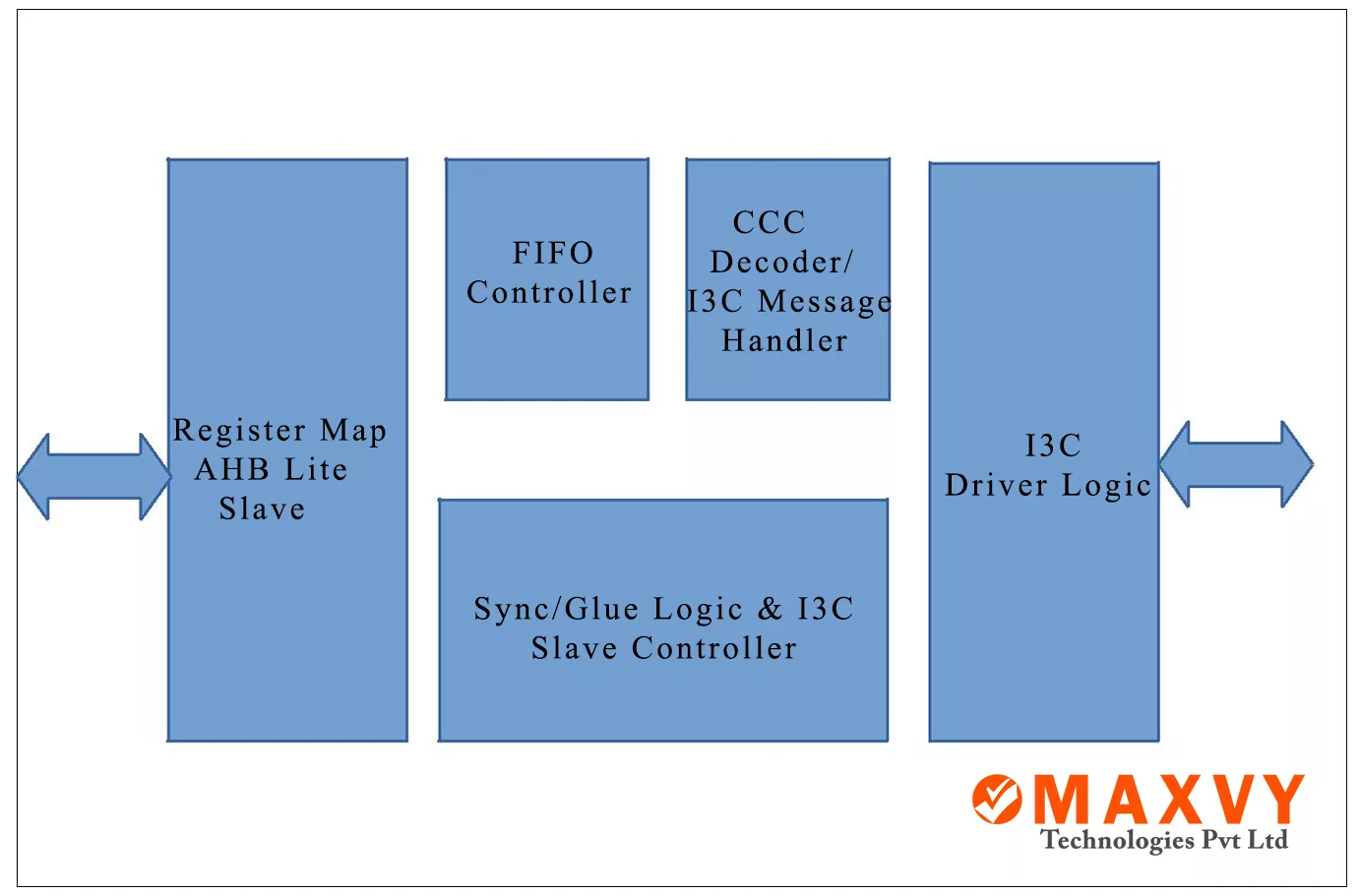

Block Diagram
MIPI I3C Basic Target Controller block diagram
What’s Included?
- Verilog Source code.
- User Guide.
- IP Integration Guide.
- Run and Synthesis script.
- Encrypted Verification Testbench Environment.
- Basic Testsuite.
Specifications
Identity
Part Number
MIPI I3C Basic Target Controller
Vendor
MAXVY Technologies Pvt Ltd
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
India
