MIPI DSI Host Combo Controller
The MIPI® DSI/DSI-2 Host and Device Controller IP solutions are fully verified and configurable controllers that implement all th…
Overview
The MIPI® DSI/DSI-2 Host and Device Controller IP solutions are fully verified and configurable controllers that implement all the protocol functions defined in the latest MIPI DSI and DSI-2 specifications. The controllers provide a high-speed serial interface between an application processor and high-resolution displays. The MIPI DSI/DSI-2 Host and Device Controllers support all commands defined in the MIPI Alliance Display Command Set (DCS) and interfaces with MIPI C-PHYs and D-PHYs that support the PHY Protocol Interface (PPI). The MIPI DSI Host and Device Controller IP can be configured to handle 1 to 4 data lanes.
The MIPI DSI/DSI-2 Host Controller supports the VESA DSC standard and enables dual MIPI DSI and DSI-2 use case enabling ultra high-definition resolution mobile systems. In addition, the controller is ASIL B Ready ISO 26262 certified, meeting the stringent requirements of automotive functional safety applications.
The MIPI DSI/DSI-2 Host and Device Controllers and C-PHY/D-PHY, and D-PHY IP provide a complete display interface IP solution that enables designers to lower their risk and cost of integrating the MIPI DSI and DSI-2 interfaces into application processors, display bridge integrated circuits (ICs) and multimedia coprocessors, while improving time-to-market.
Key features
- Compliant with the MIPI DSI and DSI-2 specifications, v2.1
- Display Pixel Interface v2.00
- Display Bus Interface v2.00
- Display Command Set v1.4
- Stereoscopic Display Formats v1.0
- Support for dual MIPI DSI use case with VESA Display Stream Compression (DSC) v1.1 standard
- Support for video and command modes
- Wide PPI interface to C-PHY v1.2 and D-PHY v2.1
- Configurable up to 4 data lanes and 3 trios
- Bi-directional communication and escape mode support
- Programmable display resolutions
- Multiple peripheral support capability with configurable virtual channels
- Video mode pixel formats: RGB565, RGB666 packed and loosely, RGB888
- ECC and checksum capabilities
- Support for ultra-low power mode
- Fault recovery schemes
- Built-in features for production and in-system testing
- ASIL B Ready ISO 26262 certified
- Arm® AMBA® APB™ control and configuration

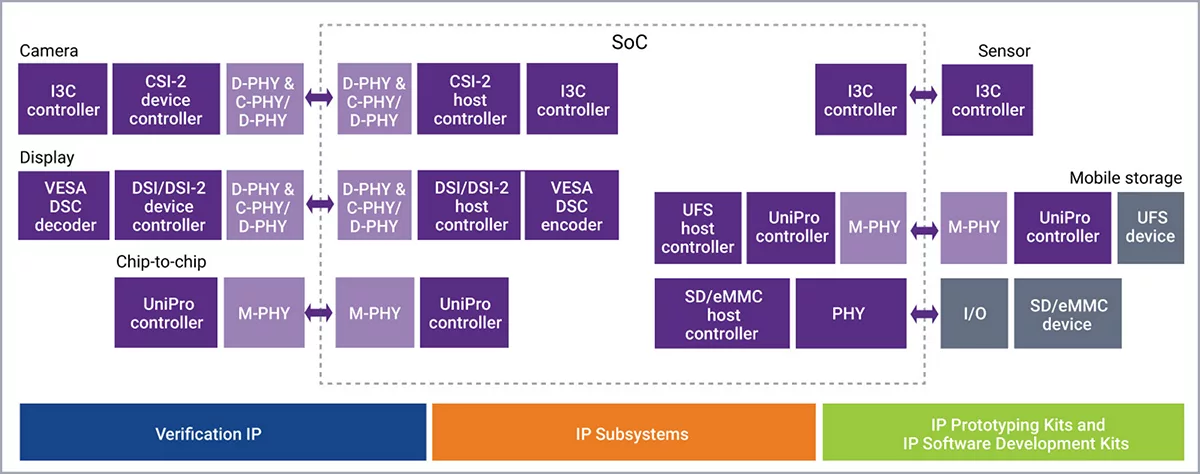

Block Diagram
dwc_mipi_dsi_host_combo block diagram
Specifications
Identity
Part Number
dwc_mipi_dsi_host_combo
Vendor
Synopsys, Inc.
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
USA
