MIPI D-PHY Transmitter/Receiver for TSMC 22nm ULL
The MIPI® D-PHY Transmitter/Receiver is useful 2 Data Lanes transmitter/receiver hard macro for DSISM/CSI-2® of TSMC 22nm ULL process.
Overview
The Renesas MIPI® D-PHY Transmitter/Receiver is useful 2 Data Lanes transmitter/receiver hard macro for DSISM/CSI-2® of TSMC 22nm ULL process.
Key features
- Renesas MIPI D-PHYTransmitter/Receiver can be used for analog Transmitter/Receiver of following interface .
- MIPI alliance Specification for D-PHY Version 2.1 15 December 2016.
- MIPI alliance Specification for DSI(Display Serial Interface).
- MIPI alliance Specification for CSI-2(Camera Serial Interface 2).
- Technology is TSMC 22nm ULL 1p9M.
- Supply voltage can be applied 1.1V for core voltage, 1.8V and 3.3V for IO voltage.
- Maximum data rate of each channel is 1.2Gbps at High-speed mode.

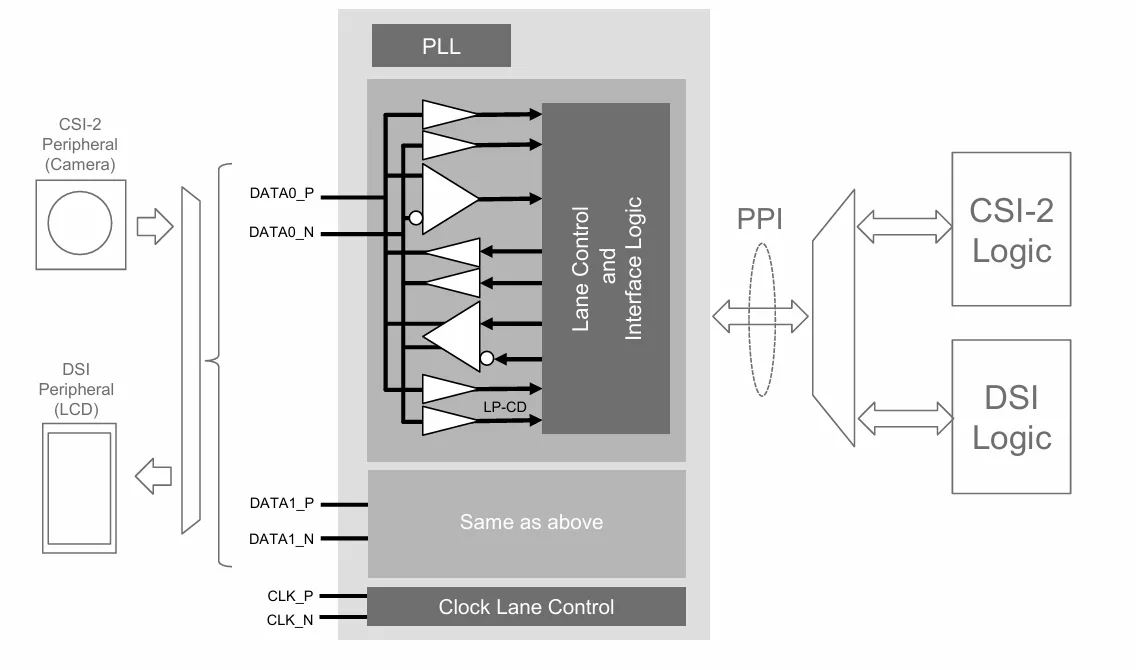

Block Diagram
