Vendor: Renesas Category: MIPI PHY

MIPI D-PHY and FPD-Link(LVDS) Combinational Transmitter for TSMC 22nm ULP

The MIPI D-PHY and FPD-Link (LVDS) combinational Transmitter is useful 4 Data Channel driverhard macro for DSI® of TSMC 22nm ULP process.

PHY MIPI D-PHY TSMC 22nm ULP Available on request View all specifications

Overview

The Renesas MIPI D-PHY and FPD-Link (LVDS) combinational Transmitter is useful 4 Data Channel driverhard macro for DSI® of TSMC 22nm ULP process.

Key features

  • Renesas MIPI D-PHYTransmitter can be used for analog Driverof following interface .
    • MIPI alliance Specification for D-PHY Version 2.1 15 December 2016.
    • MIPI alliance Specification for Display Serial Interface (DSI).
  • Renesas LVDS Transmittercan be used for analog Driver of following interface.
  • FPD-Link(LVDS) Specification for Version D-PHY ANSI/TIA/EIA-644-A FEBRUARY 2001.
  • Technology is TSMC 22nm ULP 1p10M.
  • Supply voltage can be applied 1.0V for core voltage, 1.8V  for IO voltage.
  • Maximum data rate of each channel is 1.5Gbps at High-speed mode for MIPI D-PHY Transmitter.
  • Data rate of each channel is 609Mbps for FPD-Link(LVDS)

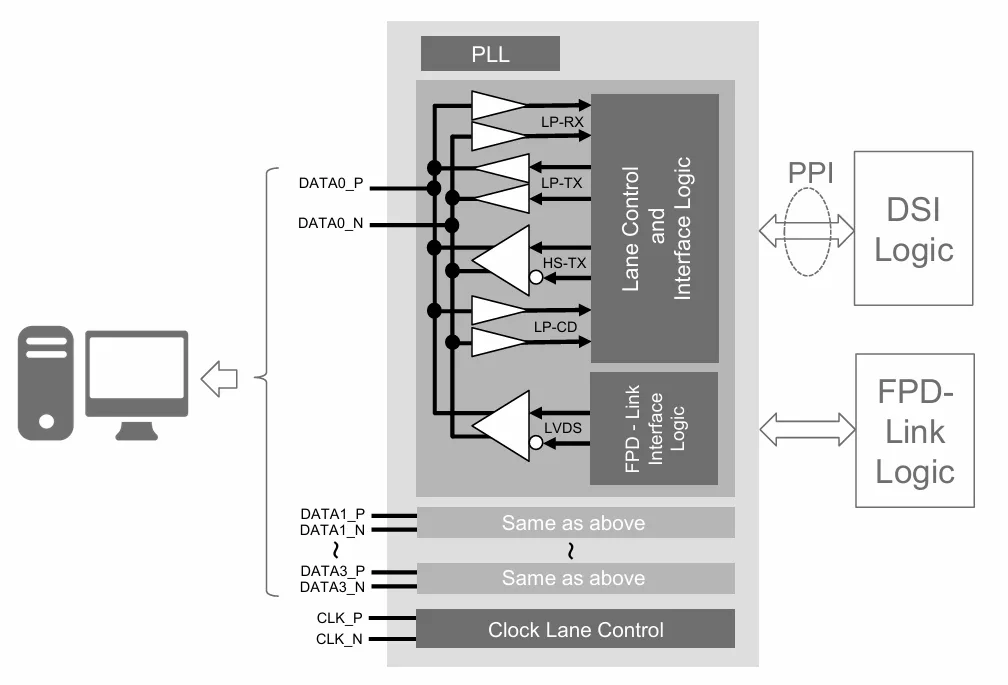

Block Diagram

Click to open fullscreen

Silicon Options

Foundry Node Process Maturity
TSMC 22nm ULP Available on request

Specifications

Identity

Part Number
MIPI D-PHY: Transmitter for DSI with FPD-Link TX
Vendor
Renesas
Type
Silicon IP
Controller / PHY
PHY

Standards & Interfaces

MIPI PHY
MIPI D-PHY
