MIPI CSI-2 V4 Device Controller Prem
The MIPI CSI-2 Host and Device Controller IP solutions are fully verified and configurable controllers that implement all protoco…
Overview
The MIPI CSI-2 Host and Device Controller IP solutions are fully verified and configurable controllers that implement all protocol functions defined in the MIPI CSI-2 specification. The IP solutions provide high-speed serial interface between an application or image processor and image sensors. The CSI-2 Host and Device Controllers can be configured to handle up to 8 data lanes or 3 trios and can support data transfers from 80 Mb/s in low-power mode to 3.5Gs/s per trio and 4.5Gbps per lane. The controllers handle all packet encoding and support all CSI-2 specified data formats including: general frame or digital interlaced video with or without accurate sync timing and virtual channel interleaving. The CSI-2 Host and Device Controllers support wide PHY Protocol Interface (PPI) for reliable high-speed data transfer. The controllers are ASIL B Ready ISO 26262 certified, meeting the stringent requirements of automotive functional safety applications.
The MIPI CSI-2 Host and Device Controllers, I3C Controller, C-PHY/D-PHY, and D-PHY provide a complete camera interface IP solution that enables designers to lower their risk and cost of integrating the MIPI CSI-2 interface into image sensors, application processors, bridge integrated circuits (ICs) and multimedia coprocessors, while improving time-to-market.
Key features
- Supports key features of the latest MIPI CSI-2 specification
- PPI interface to MIPI C-PHY v1.2 and D-PHY v2.1
- Configurable up to 8 data lanes or 4lanes/3 trios
- Programmable multi-lane merging
- Short and long packet format and all primary and secondary CSI-2 data formats
- Extended virtual channels and RAW data types
- Detection of low-power (LP) and ultra low-power (ULP) modes
- Error detection and correction with interrupt at PHY, packet, line and frame level
- ASIL B Ready ISO 26262 certified
- Arm® AMBA® APB™ control and configuration

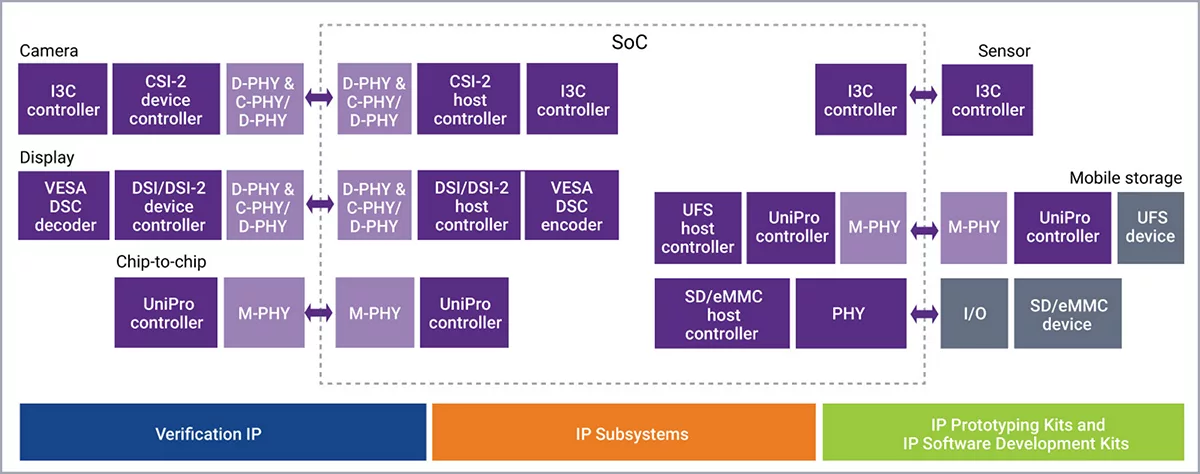

Block Diagram
dwc_mipi_csi2_v4_device_prem block diagram
Specifications
Identity
Part Number
dwc_mipi_csi2_v4_device_prem
Vendor
Synopsys, Inc.
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
USA
