The MIPI CSI-2 Host and Device Controller IP solutions are fully verified and configurable controllers that implement all protocol functions defined in the MIPI CSI-2 specification. The IP solutions provide high-speed serial interface between an application or image processor and image sensors. The CSI-2 Host and Device Controllers can be configured to handle up to 8 data lanes or 3 trios and can support data transfers from 80 Mb/s in low-power mode to 3.5Gs/s per trio and 4.5Gbps per lane. The controllers handle all packet encoding and support all CSI-2 specified data formats including: general frame or digital interlaced video with or without accurate sync timing and virtual channel interleaving. The CSI-2 Host and Device Controllers support wide PHY Protocol Interface (PPI) for reliable high-speed data transfer. The controllers are ASIL B Ready ISO 26262 certified, meeting the stringent requirements of automotive functional safety applications.

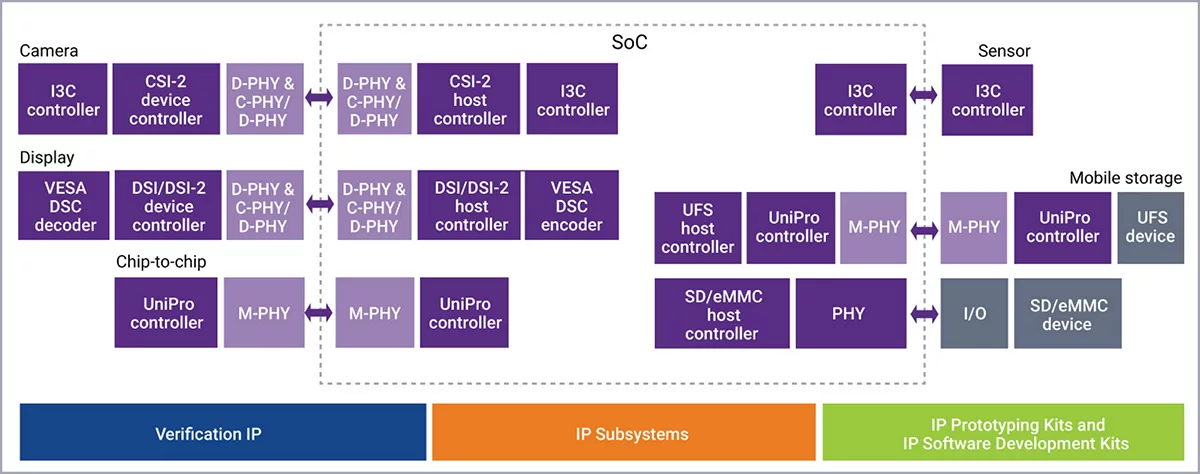

The MIPI CSI-2 Host and Device Controllers, I3C Controller, C-PHY/D-PHY, and D-PHY provide a complete camera interface IP solution that enables designers to lower their risk and cost of integrating the MIPI CSI-2 interface into image sensors, application processors, bridge integrated circuits (ICs) and multimedia coprocessors, while improving time-to-market.
Note: some files may require an NDA depending on provider policy.
MIPI CSI-2 V4 Device Controller Plus is a MIPI IP core from Synopsys, Inc. listed on Semi IP Hub.
Engineers should review the overview, key features, supported foundries and nodes, maturity, deliverables, and provider information before shortlisting this MIPI IP.
Yes. Buyers can compare this product with similar semiconductor IP cores or IP families based on category, provider, process options, and structured technical specifications.
