MIPI CSI -2 TRANSMITTER IP -V3

MIPI CSI-2 (Camera Serial Interface) Transmitter IP defines an interface between a peripheral device (camera) and host processor …

Overview

MIPI CSI-2 (Camera Serial Interface) Transmitter IP defines an interface between a peripheral device (camera) and host processor (application engine) for mobile applications. The MIPI CSI-2 Transmitter IP provides the mobile industry a standard, robust, scalable, low-power, high-speed, cost-effective interface that supports a wide range of imaging solutions for mobile devices

Key features

  • Compliance as per MIPI-CSI-2 version3.0
  • Compliance with C-PHY 2.0 for MIPI CSI-2 Version3.0
  • Compliance with D-PHY 2.5 for MIPI CSI-2 Version3.0
  • Compatibility with I2C and I3C(SDR,DDR) for CCI interface
  • CSI-2 Transmitter supports Pixel to Byte conversion from Application layer to LLP layer
  • CSI-2 Transmitter should support continuous clock behavior in clock lane when implemented in D-PHY physical layer
  • CSI-2 Transmitter provides the de-skew sequence pattern in Data Lane Module.
  • CSI-2 Transmitter supports Lane Distribution Function which accepts a sequence of packet bytes from Low Level Protocol and distributes them across N-Lanes where each lane is independent of PHY layer
  • CSI-2 Transmitter supports sync word insertion through PPI command while operating in C-PHY physical layer
  • CSI-2 Transmitter will insert the Filler bytes in LLP layer in conjunction with C-PHY physical layer to ensure that packet footer ends with 16-bit word boundary
  • CSI-2 Transmitter will set the 24 and 25 bit of packet header to be zero
  • CSI-2 Transmitter defines the minimum time for the frame blanking period
  • CSI-2 Transmitter is used to select the starting seed in scrambler and de-scrambler by Sync word
  • Data Format supported are:
    • YUV (422)
    • RGB (888/565)
    • RAW (8/10)
    • Generic 8-bit long Packet data type
    • User defined byte based data
  • CSI-2 Transmitter supports C-PHY/D-PHY/A-PHY/M-PHY. Only one PHY layer can be configured at a time of transmission
  • Processor Interfaces are AHB-Lite/ APB/ AXI for configuration
  • Supports 16 Virtual channels for D-PHY and 32 Virtual channels for C-PHY

Block Diagram

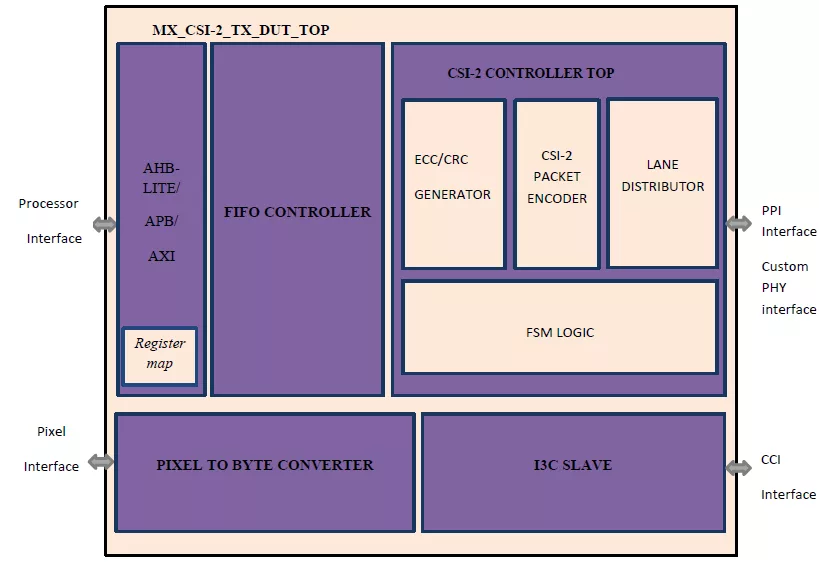

MIPI CSI-2 V3 TRANSMITTER INTERFACE IP block diagram

What’s Included?

  • Verilog Source Code
  • User Guide
  • IP Integration Guide
  • Run and Synthesis Script
  • Encrypted Verification Test-bench Environment
  • Basic Test-suite
